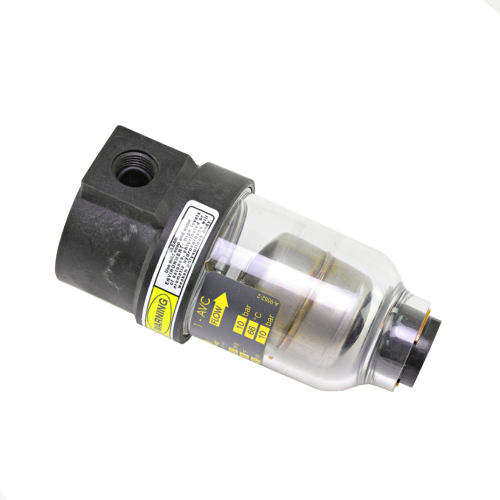

Armstrong International C5534 is an air vent that uses a free-floating lever that closes positively, ensuring a leak-tight closing under all conditions. The vent has 1/2" x 1/2" NPT Inlet/Outlet connection, 1/8" Orifice size, and a Maximum Allowable Pressure of 150 PSIG @ 150°F. This model is identical to Armstrong 1-AVC-1/2.

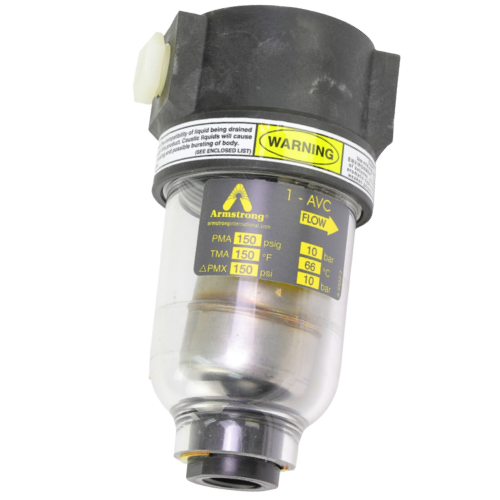

This model features an efficient operation by a simple ball float mechanism that discharges liquid only when air is present. Less maintenance cost for it has non-corrosive stainless steel internals, polysulfone body, and reinforced nylon cap. A See-Thru body wherein you can easily monitor and see if there are changes that can cause complications or damage.
| Differential Pressure | Orifice Size | |
| PSIG | BAR | |
| 15 | 1.0 | 1/8" |
| 30 | 2.0 | |
| 50 | 3.5 | |
| 75 | 5.0 | |
| 100 | 7.0 | |
| 125 | 8.5 | |
| 150 | 10.5 | |
| Inlet / Outlet Connection Type | NPT |
|---|---|
| Fitting & Pipe Plug | Reinforced Nylon |
| Body Material | Polysulfone |
| Float & Lever Screws | Stainless Steel |
| Specific Gravity Range | 1.00 to 0.80 |
| Orifice Size | 1/8 Inch |
| Retainer Ring | Zinc Plated Steel |
| Maximum Operating Pressure | 150 psi (10 bar) |
| Connection Size | 1/2" NPT Inlet x 1/2" NPT Outlet |
