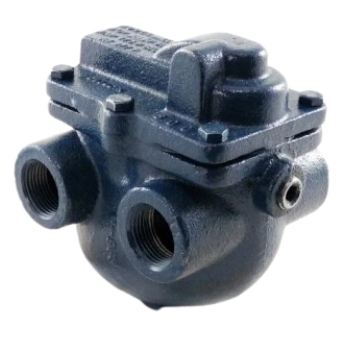

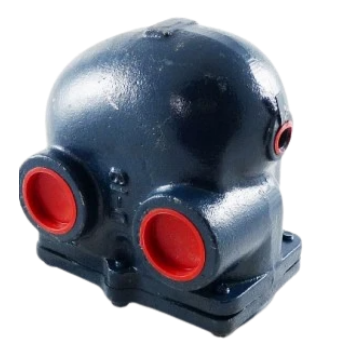

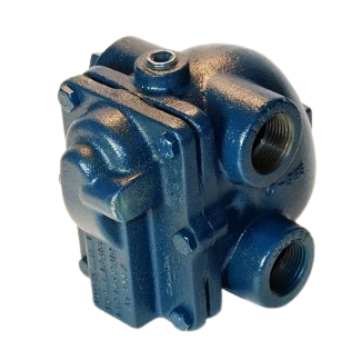

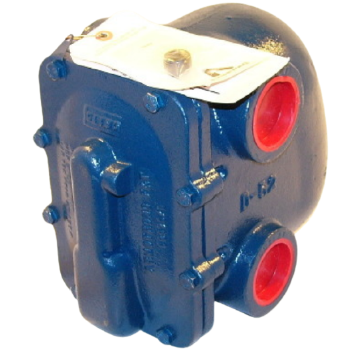

Cast iron for horizontal installation, with thermostatic air vent
For pressures to 175 psig (12 bar) . . . Capacities to 8,600 lb/hr (3900 kg/hr)
Armstrong A & AI Series F&T traps are for industrial service from 0 to 175 psig (12 bar) and feature a balanced pressure phosphor-bronze type bellows caged in stainless steel. Armstrong A & AI Series F&T traps are designed for service on heat exchange equipment where there is a need to vent air and non-condensable gases quickly.
The AI Series F&T traps feature the convenience of in-line connections with the same rugged internals found in the A Series.
| Capacities | 8 600 lb/hr (3 900 kg/hr) |
|---|---|
| Connection Size | 2" |
| Body Material | Cast Iron |
| Steam Trap Type | Float & Thermostatic |
| Max Pressure | 125 psi |
| Orifice Size: | 5/16in |
| End Connection: | Threaded |
Download Product Information:
Armstrong A & AI Series Installation Manual
Armstrong A & AI Series Float & Thermostatic Steam Trap Technical Sheet
Q & A: Ask the Questions, share answers
Do you have questions about this product?
