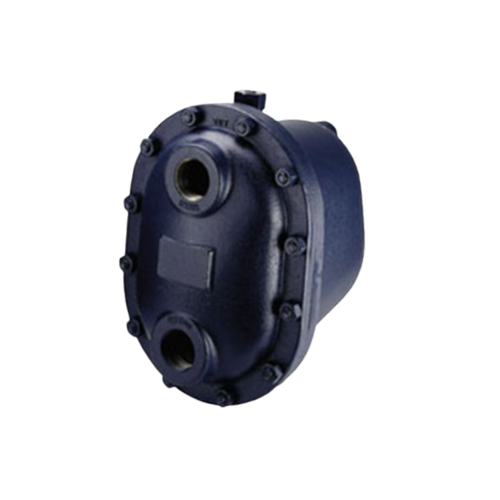

Armstrong International 250MS12 Float & Thermostatic Steam Trap 3"Npt 250psi

Armstrong International 250MS12 Float & Thermostatic Steam Trap 3"Npt 250psi
Images for general purposes only. Actual may be different than depicted.
Armstrong International 250MS12 Float & Thermostatic Steam Trap 3"Npt 250psi

Armstrong International 250MS12 Float & Thermostatic Steam Trap 3"Npt 250psi

SKU: 250MS12
Rating:
Quantity Price Stock
Usually Ships 2 - 3 Weeks
Usually Ships 2 - 3 Weeks
$21,605.31     /ea
Usually Ships 2 - 3 Weeks

Shipping Note

Ships via LTL ( Truck )

0
$0.00
0
$0.00
0
250MS12
The Armstrong International 250MS12 is a cast steel float and thermostatic steam trap for horizontal installation with a 1 7/8" orifice and thermostatic air vent.  The unit has a pipe connection size of 3" not and a 250psi (17 bar) saturated steam maximum working pressure.

The simple yet rugged cast steel construction of the LS & MS Series UltraCapacity F&T steam traps offers long, trouble-free service. All floats, valves and seats, and lever mechanisms are constructed of stainless steel. The integral thermostatic air vent is a balanced-pressure phosphor bronze bellows caged in stainless steel. It is designed especially for heavy-duty industrial applications where highly efficient, uninterrupted service is essential. This balanced-pressure air vent will respond to the pressure-temperature curve of steam at any pressure from zero to 250 psig (17 bar). Thus—up to 250 psig (17 bar)—air is vented at slightly below steam temperature.
Connection Size 3"
Connection Type Npt
Orifice Size 1 7/8"
Maximum Operating Pressure 250 psig (17 bar) saturated steam
