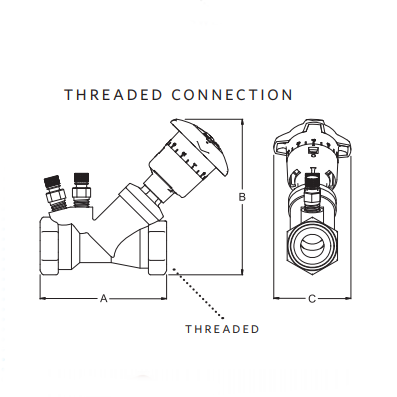

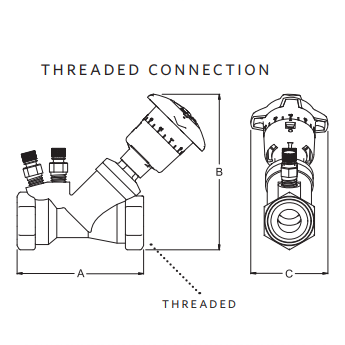

Model No. | Pipe Size | A | B | C |
CBV075VT | 3/4 inch | 3.26" (83 mm) | 4.90" (125 mm) | 2.76" (70 mm) |
Connection Size | 3/4 inch |
---|---|
Connection Type | Threaded NPT |
Maximum Working Pressure | 300 PSI (20 bar) |
Operating Temperature Range | -4 F to 300 F (-20 C to 150 C) |
Body Material | Brass |
Stem and Disk | Brass |
Elastomers | EPDM |
Handwheel | Reinforced Nylon ; ABS |
Download Product Information:
