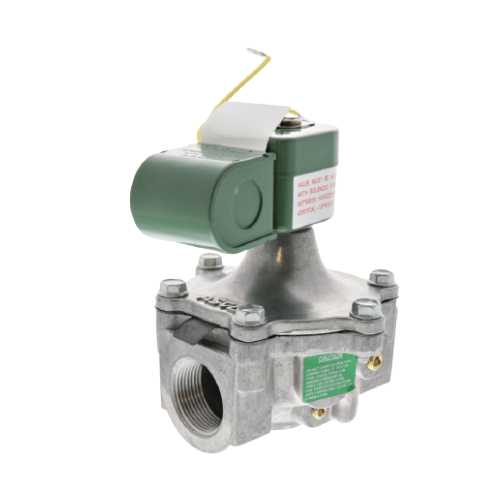

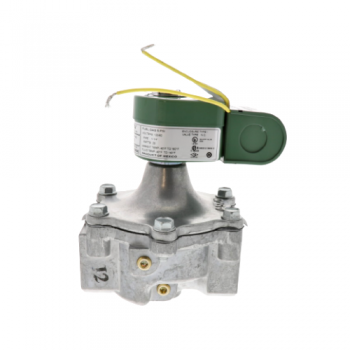

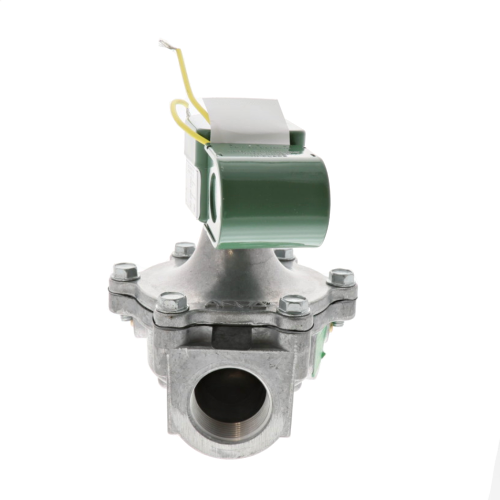

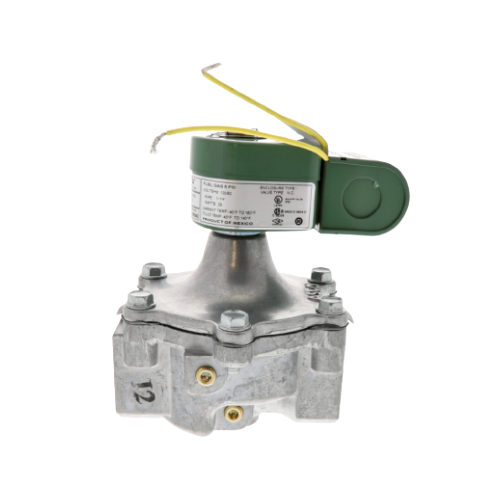

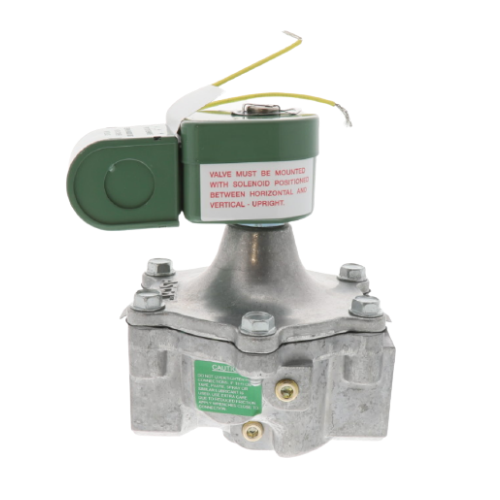

Asco K3A672V Aluminum Body 2-Way Gas Valve 1-1/4" Normally Closed 5 PSI 120V

Asco K3A672V Aluminum Body 2-Way Gas Valve 1-1/4" Normally Closed 5 PSI 120V
Images for general purposes only. Actual may be different than depicted.
Asco K3A672V Aluminum Body 2-Way Gas Valve 1-1/4" Normally Closed 5 PSI 120V Asco K3A672V Gas Shutoff Valve 0-5 PSI Asco K3A672V Pilot Operated Gas Shutoff Valve Asco K3A672V High Pressure Pilot Operated Gas Shutoff Valve 1 1/4" NPT

Asco K3A672V Aluminum Body 2-Way Gas Valve 1-1/4" Normally Closed 5 PSI 120V

SKU: K3A672V
Rating: (1)
Quantity Price Stock
8
Usually ships in 1-2 weeks
$452.08     /ea
8
0
$0.00
0
$0.00
0
K3A672V
Asco K3A672V Gas Shutoff Valve with 1-1/4" NPT pipe and 1 5/8" orifice.  It is a two-way valve made of die-cast aluminum material that has operating differential pressure ranging from 0 to 5 PSI.

The K3A6 High-Pressure Pilot Operated Gas Shutoff Valves are applicable on commercial and industrial gas burners for positive shutoff.  The valve consists of an upstream and downstream 1/8" NPT pipe tap with a plug for routine testing.  Also, the series features a Type 1 General Purpose Junction Box enclosure for electric parts protection.  Ambient temperature range -40 F up to 175 F.
Enclosure Type 1 General Purpose Junction Box Housing
Hertz 60 Hz
Voltage 120V
Wattage 20
CV Flow 18.4
Opening Time/Closing Time Less than 1 Second
Approvals UL Listed, CSA, FM

By Chris

from

Yes, I would recommend this product to a friend or co-worker

5.0 2 way gas valve

Great product, work perfect out of the box.
