Asco S261SH02N3HJ7 Shutoff Valve 2-Way Normally Closed 1-1/2" NPT 120V 25 psi

Name: Asco S261SH02N3HJ7 Shutoff Valve 2-Way Normally Closed 1-1/2" NPT 120V 25 psi
Brand: Asco
SKU: S261SH02N3HJ7
Price: 932.63 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Asco S261SH02N3HJ7 Shutoff Valve 2-Way Normally Closed 1-1/2" NPT 120V 25 psi

SKU: S261SH02N3HJ7

Brand:

Rating:

Quantity	Price	Stock
6 Usually Ships 2 - 4 Weeks	$932.63 /ea	6

Buy in Bulk & Save

Quantity	Price
3+	$885.99 /ea

Add to Cart

Add to Wishlist

The S261SH02N3HJ7 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Asco S261SG02N3HJ7 Shutoff Valve Pilot Operated 2-Way Normally Closed 1-1/2" NPT 120V 0-30 psi	S261SG02N3HJ7 Brand Asco-General

Add to Cart

Add to Wishlist

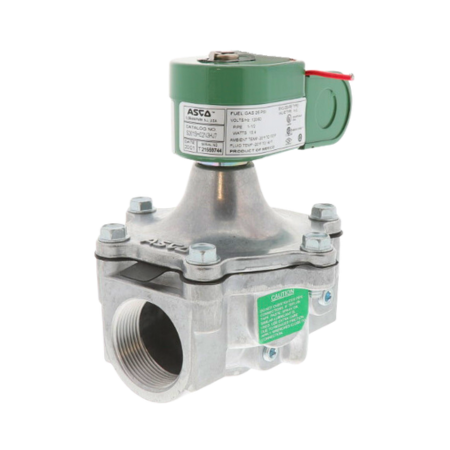

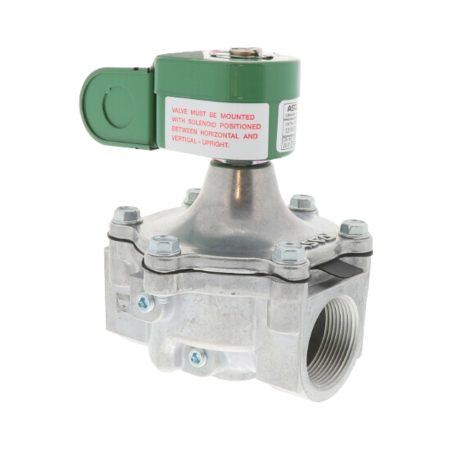

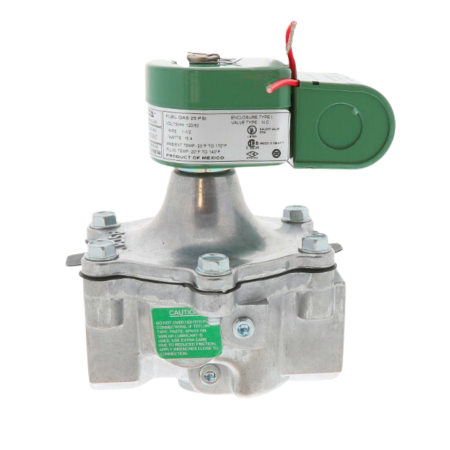

The Asco S261SH02N3HJ7 is a 2-way normally closed safety shutoff valve that operates at 15.4W, 120V, and 60 Hz power supply. This device has a 1-1/2” NPT connection and a 1-5/8” orifice size. FM Approved, UL, and CSA Listed.

Construction:

Aluminum Body
NBR Seals and Disc
305 Stainless Steel Core Tube
430F Stainless Steel Core and Plugnut
302F Stainless Steel Shading Coil
Zinc-Plated Steel Pipe Plug

This valve features an opening and closing time of less than 1 second, utilizing a zero differential piloted diaphragm. It has a flow factor of 35 Cv (30 Kv), a maximum pressure of 25 psi, and a gas capacity of 1,900,000 BTU/hr.

The S261SH02N3HJ7 is a direct replacement for the obsolete model S261SG02N3HJ7. Suitable for on/off control of natural gas flow in commercial and industrial gas burners.

Power Supply	15.4W, 120V, 60 Hz
Pipe Size	1-1/2" NPT
Orifice Size	1-5/8
Insulation Class	Class F
Valve Operation	2-Way Normally Closed
Ambient Temperature Range	-20 to 170°F (-29 to 77°C)
Flow Factor	35 Cv (30 Kv)
Maximum Pressure	25 psi (1.7 bar)
Maximum Fluid Temperature	140°F (60°C)
Gas Capacity	1,900,000 btu/hr

Download Product Information:

Asco Gas Shutoff Valves Catalog
