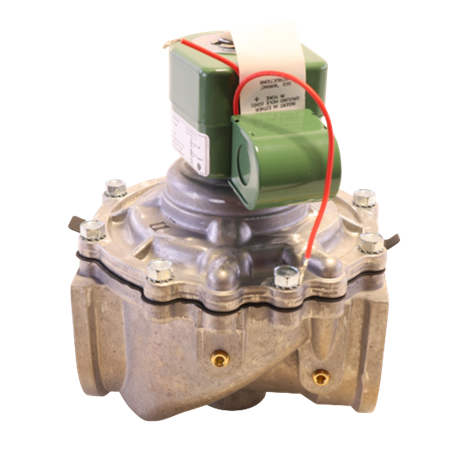

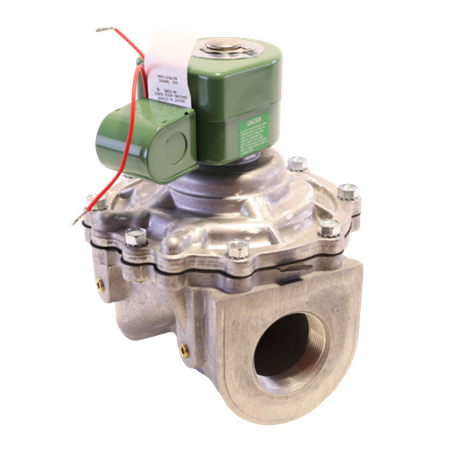

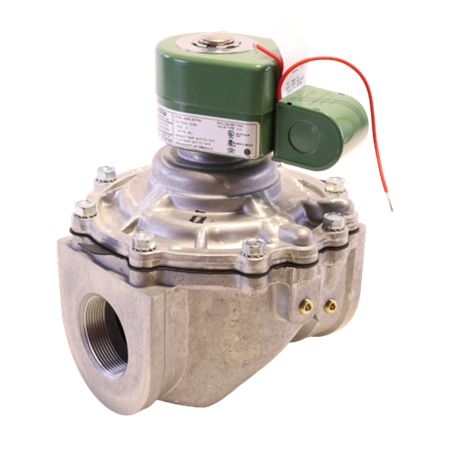

Asco S261SH02N3JK4 Normally Closed Gas Shutoff Valve 2" 120V

Name: Asco S261SH02N3JK4 Normally Closed Gas Shutoff Valve 2" 120V
Brand: Asco
SKU: S261SH02N3JK4
Price: 1337.84 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Asco S261SH02N3JK4 Normally Closed Gas Shutoff Valve 2" 120V

SKU: S261SH02N3JK4

Brand:

Rating:

Quantity	Price	Stock
17 Call 1-866-494-4610 for stock	$1,337.84 /ea	17

Buy in Bulk & Save

Quantity	Price
3+	$1,270.94 /ea

Add to Cart

Add to Wishlist

The S261SH02N3JK4 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Asco S261SG02N3JK4 Safety Shutoff Valve Pilot Operated 2" Normally Closed 0-25psi 120V	S261SG02N3JK4 Brand Asco-General

Add to Cart

Add to Wishlist

Asco S261SH02N3JK4 Normally Closed Shutoff Valve 2" 120V

Features:

2-way normally closed operation
Die-cast aluminum bodies
Zero differential piloted diaphragm
For on-off control of fuel gas in commercial and industrial gas burners
Valves provided with 1/8" NPT upstream and downstream pipe taps with plug for routine testing
Broad ambient temperature range -20˚F up to 170˚F

Maximum Fluid Temperature	140F (60C)
Operating Pressure Differential	0-25 psi (1.7 bar)
Gas Capacity	4,487,000
Flow Factor	83.0 Cv (72 Kv)
Orifice Size	3" (76 mm)
Pipe Size	2"
Wattage	28.2
Close-Off Pressure	50 psi (3.5 bar) maximum
Valve Response Time (Opening & Closing)	< 1 second
Body Material	Aluminum

Download Product Information:

Asco S261 Gas Shutoff Valve Technical Data Sheet
