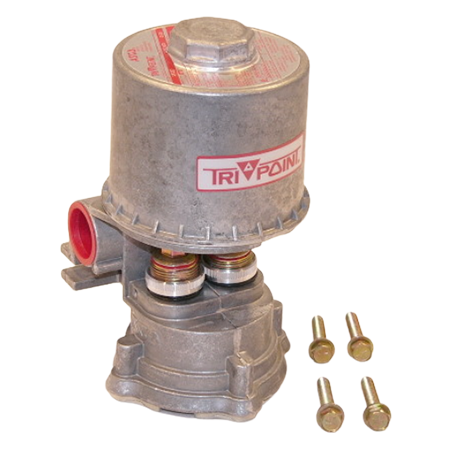

Asco SA12D Tri-point Pressure Switch Single-Stage Adjustable Deadband Explosion Proof

Name: Asco SA12D Tri-point Pressure Switch Single-Stage Adjustable Deadband Explosion Proof
Brand: Asco
SKU: SA12D
Price: 12337.50 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Asco SA12D Tri-point Pressure Switch Single-Stage Adjustable Deadband Explosion Proof

SKU: SA12D

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 3 - 4 Weeks Usually Ships 3 - 4 Weeks	$12,337.50 /ea	Usually Ships 3 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The SA12D is a single-stage tri-point pressure switch that includes a transducer with a 1/4" NPT connection size. It has a +1% operating range and -4 to 140°F (20 to 60°C) ambient temperature with die-cast aluminum housing material. UL-listed, FM-approved, and CSA-certified.

The switch deadband can be adjusted through the external adjusting nuts and large visual adjustment scales. The unit is constructed with an explosion-proof enclosure suitable for locations with hazardous gases.

The SA12D is easily installed and can be mounted in any position.

Enclosure Rating	NEMA 7/9
Enclosure Material	Die-Cast Aluminum
Connection Size	1/4" Female Thread
Approvals	UL-listed, FM-approved, & CSA-certified
Ambient Temperature	-4°F to 140°F (-20 to 60°C)
Voltage	125 - 250V
Contact Configuration	SPDT
Operating Range	+1%

Download Product Information:

Asco SA12D Tri-point Pressure Switch Installation & Maintenance Instructions

Asco SA12D Tri-point Pressure Switch Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

What is the procedure to set my pressure switch to cut out at 80 psi and reset at 50 psi. I have done this in the past but lost my set up guide. Thanks Bill

Asked on October 26, 2017 by Bill from Morrisburg ont. canada

1 Answers

Have an answer? Click Here

You can find instructions to adjust the signal setting in the Installation Instructions which you can download on the product detail page.

Replied on October 26, 2017 by Ron from Industrial Stores
