Automated Logic ALC/LDT1-RR50-BB Water Leak Detector 50ft Rope Sensor 0.5 Amp Spst Relay

Automated Logic ALC/LDT1-RR50-BB Water Leak Detector 50ft Rope Sensor 0.5 Amp Spst Relay
Images for general purposes only. Actual may be different than depicted.
Automated Logic ALC/LDT1-RR50-BB Water Leak Detector 50ft Rope Sensor 0.5 Amp Spst Relay Automated Logic Water Leak Detector Rope Sensor

Automated Logic ALC/LDT1-RR50-BB Water Leak Detector 50ft Rope Sensor 0.5 Amp Spst Relay

SKU: ALC/LDT1-RR50-BB
Rating:
Quantity Price Stock
Usually Ships 3-5 Days
Usually Ships 3-5 Days
$387.60     /ea
Usually Ships 3-5 Days
0
$0.00
0
$0.00
0
ALC/LDT1-RR50-BB

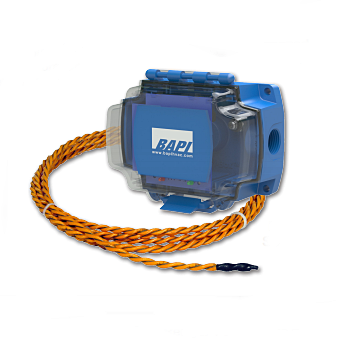

The Automated Logic ALC/LDT1-RR50-BB Water Leak Detector has a 50 ft Rope Sensor with a 0.5 Amp SPST Relay.

The Water Leak Detectors can easily detect water in a span of 5 seconds.  The detector can sense different water types such as dirty and purified water, deionized water, distilled water, and reverse osmosis water.

The detector features an LED light indicator which you can easily identify the status of the unit and water detection.  A green light means normal operation and red when water is detected.  Also, it has a latching alarm (alarm continues until manually reset) or non-latching alarm (relay automatically resets after water is removed) feature that you can easily set.  You also have an option to switch the relay supervision.

A great addition to your HVAC system that can alert you of water leaks.  It doesn't prevent water leaks but, a cost-effective device to have for a faster response to stop the leakage.
Probe Sensor Remote Rope Sensor with 50 foot plenum-rated sensor cable
Enclosure BAPI-Box
Termination Terminal Strip 12 to 24 AWG
Ambient 32 to 167F (0 to 75C); 0 to 95% RH non-condensing
Leak Detector Transmitter Water leak detector transmitter w/ one 0.5A SPST contacts
Enclosure Rating Submersible with FEP plenum-rated, waterproof cable
Wiring Flex Connector or Liquid Tight

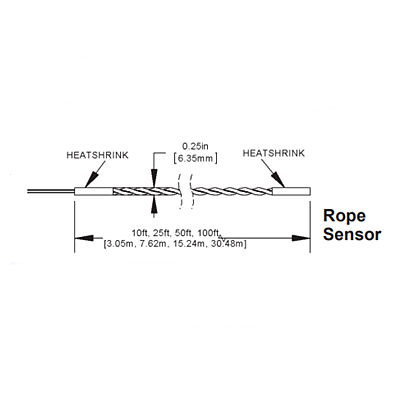

Sensor Long Line Wire Sensor, Plenum Rated. Detects 1/8" of water over the full length
Indication 1 Green Power LED, 1 Red Alarm LED
