Barber Colman (Schneider Electric) MN-S4-FCS-500 Sensor with Fan Speed Function

Barber Colman (Schneider Electric) MN-S4-FCS-500 Sensor with Fan Speed Function
Images for general purposes only. Actual may be different than depicted.
Barber Colman (Schneider Electric) MN-S4-FCS-500 Sensor with Fan Speed Function Barber Colman (Schneider Electric) MN-S4-FCS-500 Sensor with Fan Speed Function Barber Colman (Schneider Electric) MN-S4-FCS-500 Temperature Sensor

Barber Colman (Schneider Electric) MN-S4-FCS-500 Sensor with Fan Speed Function

SKU: MN-S4-FCS-500
Tariff HS Code: 8536698000
Rating:
Quantity Price Stock
5
Usually Ships 1 - 2 Weeks
$533.61     /ea
5
0
$0.00
0
$0.00
0
MN-S4-FCS-500

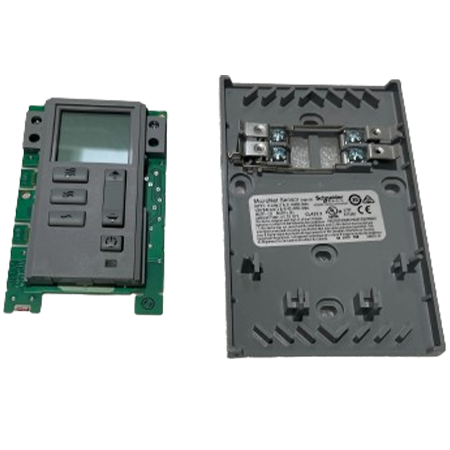

The MN-S4-FCS-500 is a sensor that has a large easy-to-read digital LCD and LED display that provides accurate temperature readings & fan status.  It has a fan speed control function and six tactile buttons that allow easy operation of the system.  CE-marked, UL-listed, and CSA-certified.

The sensor is suitable for TAC I/A series MicroNet controller applications.  The unit is used to measure the room temperature and sends the information to the controller.  It features an integral analog-to-digital conversion that removes sensor-to-controller noise effects and wire resistance offset.

The MN-S4-FCS-500 is designed for wall mounting installation to a 2 x 4 electrical box, 1/4 DIN electrical box, or surface box.  It also has a sensor link (S-Link) communication protocol that allows a two-wire interface for power and exchange of sensor and subbase information.
Approvals CE-marked, UL-listed, and CSA-certified
Maximum Wire Length 200 ft. (61 m)
Fan Modes (On/Speed (Low/Medium/High), Auto
Wiring Terminals Four (4) screw terminals. AWG #18 to #24
Temperature Range 32 to 122°F (0 to 50°C)
Mounting Direct-wall, 2 x 4 electrical box, 1/4 DIN electrical box, or surface box
Enclosure Rating NEMA 1
Ambient Humidity 5 to 95% RH, non-condensing
