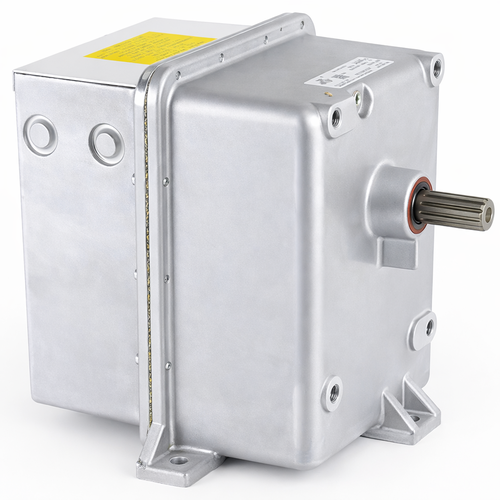

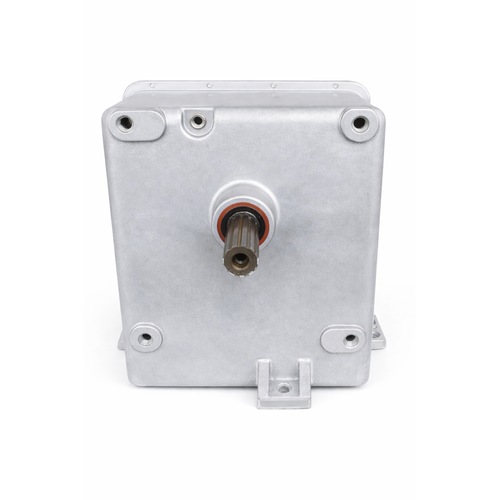

Barber Colman (Schneider Electric) MP-9810 Actuator is a high-torque, oil-submerged electric actuator designed for damper, valve, and temperature regulating control applications.

This UL-listed actuator delivers dependable performance in HVAC and industrial systems that require strong rotary output and reliable positioning.  The MP-9810 provides 1300 lb-in. of rated torque, 180° reversible shaft travel, and a 115-second no-load timing cycle for controlled, consistent operation.

This MP-9000 series actuator features a standard 12-tooth splined output shaft, SPDT auxiliary switch, and internal 100-ohm potentiometer.  Its oil-submerged motor and gear train are designed for continuous lubrication and cooling, helping reduce maintenance requirements and support long service life in demanding installations.

The actuator operates at 120 volts, 60 Hz, 1.8 amps, 110W, and is suitable for a maximum ambient temperature of 136°F (58°C).  The Barber Colman MP-9810 actuator is well suited for replacement or retrofit use in systems requiring high torque and dependable reversing action.
