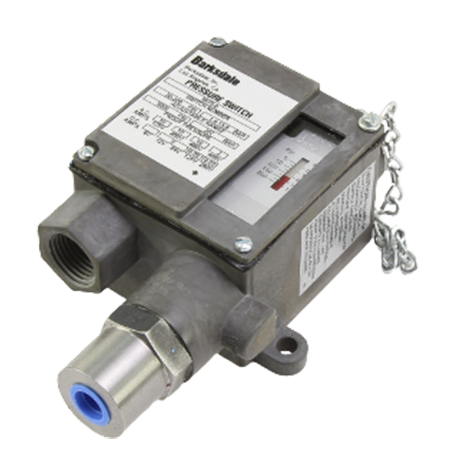

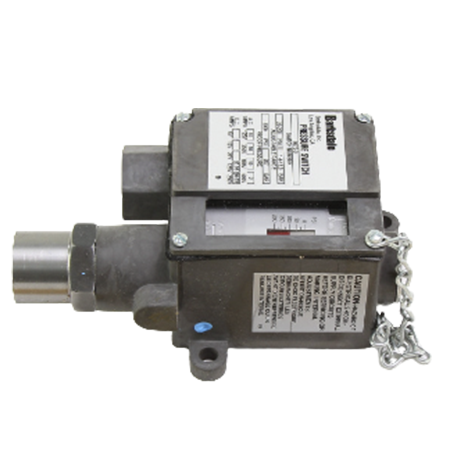

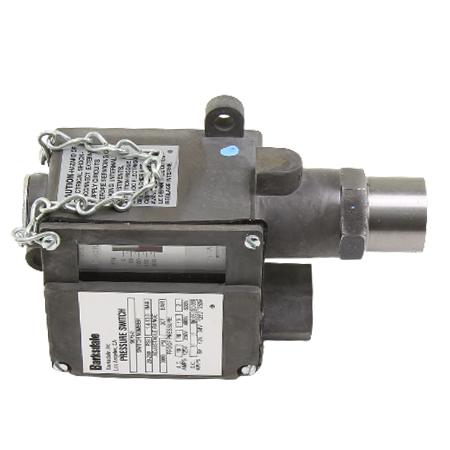

Barksdale Products 9675-0 Pressure Switch 20-200 PSI

Name: Barksdale Products 9675-0 Pressure Switch 20-200 PSI
Brand: Barksdale
SKU: 9675-0
Price: 720.89 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Barksdale Products 9675-0 Pressure Switch 20-200 PSI

SKU: 9675-0

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$720.89 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 9675-0 is an SPDT pressure switch that has a 1/4" NPT pressure connection size. It has a 20 to 200 psi adjustable pressure range with a 5 to 20 psi deadband and 3000 psi proof pressure.

The pressure switch features calibrated dials that allow for quick and easy setpoint adjustment. The pressure can be configured by turning the adjustment clockwise to increase and counterclockwise to decrease the setpoint.

Check out the suitable applications:

Hydraulic
Machine Tools
Compressors
Mining
Specialty Vehicles
Lubrication Equipment
Metal Working

The 9675-0 is easy to install with tamper-proof external adjustment and NEMA 13 enclosure that provides extra protection.

Adjustable Pressure Range	20 to 200 psi (1.4 to 13.8 bar)
Proof Pressure	3000 psi (207 bar)
Pressure Connection Size	1/4" NPT
Conduit Connection Size	1/2" NPT
Deadband Range	5 to 20 psi (0.3 - 1.4 bar)
Operating Temperature Range	-20 to 165°F (-29 to 74°C)
Switch Type	SPDT
Enclosure Material	Anodized Aluminum
Accuracy	± 2% of the adjustable range
Approvals	Compliant to PED 97/23/EC

Download Product Information:

Barksdale Products 9675-0 Pressure Switch Technical Datasheet
