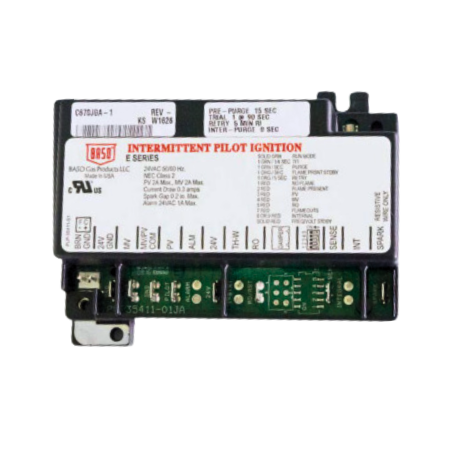

Baso C661ABA-1C Intermittent Pilot Ignition Control Board 24V 50/60 Hz

Baso C661ABA-1C Intermittent Pilot Ignition Control Board 24V 50/60 Hz
Images for general purposes only. Actual may be different than depicted.

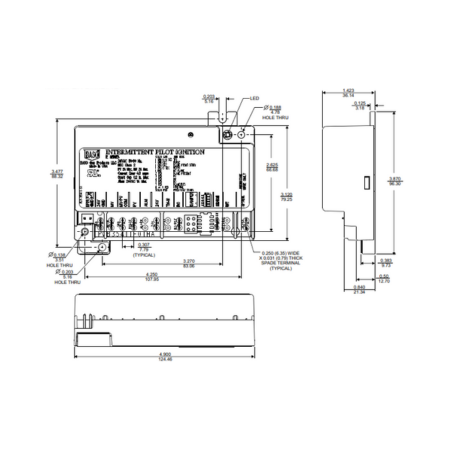

Baso C661ABA-1C Intermittent Pilot Ignition Control Board 24V 50/60 Hz Baso C661ABA-1C Intermittent Pilot Ignition Control Board Dimensions

Baso C661ABA-1C Intermittent Pilot Ignition Control Board 24V 50/60 Hz

SKU: C661ABA-1C
Rating:
Quantity Price Stock
4
Usually Ships 2 - 4 Weeks
$183.39     /ea
4

Buy in Bulk & Save

Quantity Price
5+ $165.06 /ea

The C661ABA-1C found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Baso BG1600M00EM-1AD Intermittent Pilot Ignition Control Board 24V 50/60 Hz BG1600M00EM-1AD

Brand Baso
Baso BG1600M00EM-1AD Intermittent Pilot Ignition Control Board 24V 50/60 Hz
0
$0.00
0
$0.00
0
C661ABA-1C
The Baso C661ABA-1C is an intermittent pilot ignition control board with remote flame sensing.  This component operates at 24 and 50/60 Hz power ratings.  UL Recognized.

The control board features no retry, no pre-purge, 15 seconds of inter-purge, and 8 seconds of single trial for ignition.  It provides ignition sequence, flame monitoring, and safety shut-off.

The C661ABA-1C directly replaces Johnson Controls G770KGA-1, G770KGA-3, and Baso BG1600M00EM-1AD gas-fired appliances.  Suitable for boilers, gas furnaces, water heaters, and commercial cooking.
Voltage 24V
Frequency 50/60 Hz
Inter-Purge 15 Seconds
Trial for Ignition 1 at 8 Seconds
Pre-Purge None
Retry None
Maximum Current 1A PV; 2A MV
Maximum Spark Gap 0.2-inch
Current Draw 0.2 Amps
Circuit NEC Class 2
