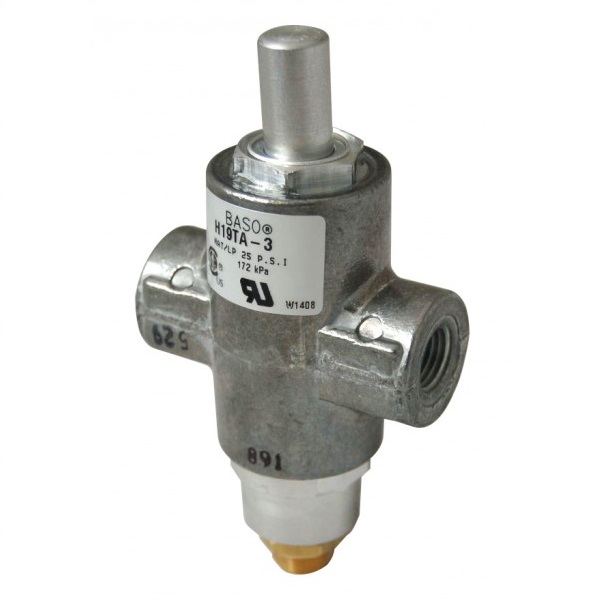

The Baso H19TA-3 is a reliable high-pressure automatic pilot valve. This pilot shut off gas valve is used for crop dryers, industrial heaters, and other related appliances using natural gas, Liquefied Petroleum (LP) or LP gas-air mixtures with up to 25 psi (1.72 bar [172 kPa]). The valve shuts off and provides safe lighting if the flame heating the thermocouple is extinguished. It allows gas flow to the pilot and main burner.

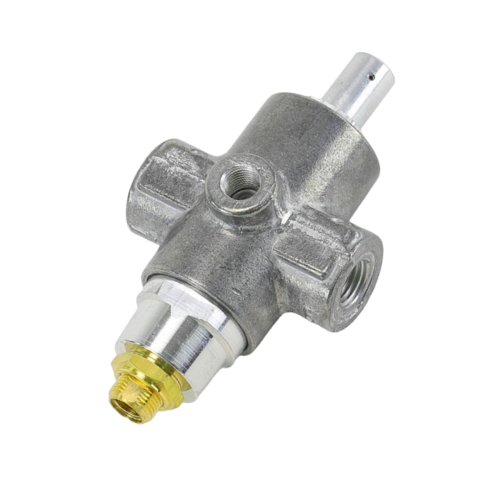

The H19TA-3 has an inlet/outlet npt connection with a 1/4" x 1/4" size and a 1/8"-27 npt pilot tap on the right. The valve body features a compact design made of aluminum material and holds CSA and UL recognized.
| Gas Type | Natural Gas & Liquid Propane |
|---|---|
| Pressure | 0-25 PSI |
| Capacity | 600,000 Btu/hr |
| Wattage | 176Kw |
| Flow Interrupter | No Interruptor |
| Connection | 1/4" |
| Pilot Tap | 1/8"-27 (on right) |
Download Product Information:
Baso H19 Automatic Shut-Off Pilot Gas Valve Installation Manual
