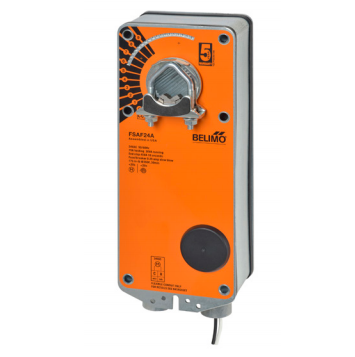

Belimo FSAF120A-S 120V 180# On/Off Spring Return Actuator

Belimo FSAF120A-S 120V 180# On/Off Spring Return Actuator
Images for general purposes only. Actual may be different than depicted.
Belimo FSAF120A-S 120V 180# On/Off Spring Return Actuator

Belimo FSAF120A-S 120V 180# On/Off Spring Return Actuator

SKU: FSAF120A-S
Rating:
Quantity Price Stock
5
Usually ships 2-3 Weeks
$693.10     /ea
5

Buy in Bulk & Save

Quantity Price
5+ $658.44 /ea
0
$0.00
0
$0.00
0
FSAF120A-S

The FSAF_A series actuators are mounted to the damper axle shaft or jackshaft (1/2” to 1.05”) via a cold-weld clamp. Teeth in the clamp and V-bolt dig into the metal of both solid and hollow shafts maintaining a perfect connection. The specially designed clamp will not crush hollow shafts. The bottom end of the actuator is held by an anti-rotation strap or by a stud provided by the damper manufacturer. The actuator is mounted in its fail safe position with the damper blade(s) closed. Upon applying power, the actuator drives the damper to the open position. The internal spring is tensioned at the same time. If the power supply is interrupted, the spring moves the damper back to its fail-safe position.

Download Product Information:

Tech Sheet
