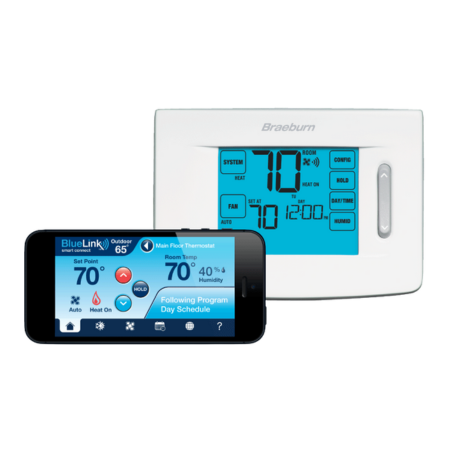

The Braeburn 7320 is a BlueLink Smart Wi-Fi universal programmable thermostat. It has a 6.5 sq. in. easy-read touchscreen with an adjustable bright blue backlight and has 3.8” x 5.5” x 1.19” dimensions. It can be powered by either 24 Volt AC or 3.0 Volt DC in 2 “AA” Alkaline batteries.
Features
A direct replacement for Braeburn 6300 and other models, check out the data sheet in the technical tab. Compatible with heat pump systems up to 3 heat/2 cool and conventional systems up to 2 heat/2 cool. Also compatible with single-stage heat/cool heat pump and conventional systems.
| DC Power | 3.0 Volts DC (2 “AA” Alkaline batteries included) |
|---|---|
| Maximum Load | 1 amp Per Terminal / 6 amp All Terminals |
| Wi-Fi Communication | 802.11 (Requires 24 VAC with "C" Wire) |
| Temperature Accuracy | +/- 1° F (+/- .5° C) |
| AC Power | 24 Volt AC |
| Staging | 3 Heat / 2 Cool |
| Display Range | 40 to 99°F (5 to 37°C) |
| Operating Humidity | 5% to 95% Relative Humidity |
| Programming | 7 Day, 5-2 Day, or Non-Programmable |
| Control Range | 45 to 90°F (7 to 32°C) |
Download Product Information:
Braeburn 7320 Smart Wi-Fi Universal Thermostat Datasheet
Braeburn 7320 Universal Programmable Smart Wi-Fi Thermostat User Manual
Braeburn 7320 Universal Programmable Smart Wi-Fi Thermostat Installer Guide
Braeburn 7320 Universal Programmable Smart Wi-Fi Thermostat Wi-Fi Setup Guide
