Bray Valves 551000-74603533 Series 55 Filter Regulator

Name: Bray Valves 551000-74603533 Series 55 Filter Regulator
Brand: Bray
SKU: 551000-74603533
Price: 131.18 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Bray Valves 551000-74603533 Series 55 Filter Regulator

SKU: 551000-74603533

Brand:

Rating:

Quantity	Price	Stock
10 Call 1-866-494-4610 for stock	$131.18 /ea	10

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Bray Valves Filter Regulator

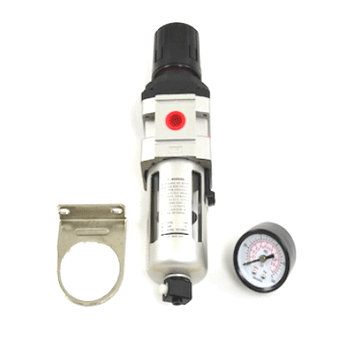

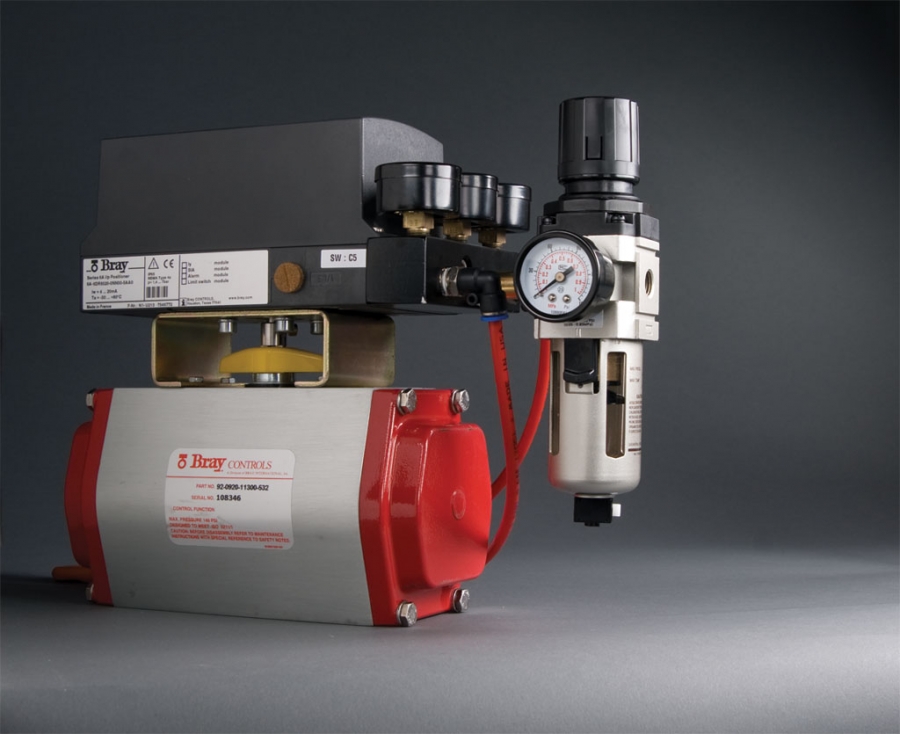

The Bray Series 55 Filter Regulator is a 5 micron filter designed to provide nominal filtration removal of solids and liquids from the compressed air with accurate control to any pneumatic control device and are strongly recommended for use with the Bray Series 64 and 6A positioners.

Features:

Locking nob that allows downstream pressure adjustment and locks the pressure setting in place
Threaded collar to permit easy attachment of bracket for panel mounting
1/4" NPT of 1/4 G Metric pressure ports
Bowl quick release for easy removal of the bowl and guard for access to the filter element without the need for special tools
Transparent polycarbonate bowl for easy view of liquid levels
Metal bowl guard provides sturdy breakage protection from external environmental factors
Pushbutton drain for easy removal of liquid from the bowl

Temperature Range	32F to 175F (0C to 80C)
Housing	Zinc/Non-Removable Rising Knob
Flow	SCFM 30
Protection Class	0-250 PSIG (0-1.70 MPa; 0-17.2 bar)
Pressure Ports	1/4" NPT or G 1/4
Gauge Ports	G 1/8
Set Pressure	7 -125 PSIG (0.05 - 0.85MPa) (0.5 - 8.6 Bar)

Download Product Information:

Bray Controls Pneumatic Catalog
