Bray Valves 70E060-113F3536/K Actuator 60S 24V 600 in. lb.

Name: Bray Valves 70E060-113F3536/K Actuator 60S 24V 600 in. lb.
Brand: Bray
SKU: 70E060-113F3536/K
Price: 2591.61 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Bray Valves 70E060-113F3536/K Actuator 60S 24V 600 in. lb.

SKU: 70E060-113F3536/K

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 3 Weeks Usually Ships 2 - 3 Weeks	$2,591.61 /ea	Usually Ships 2 - 3 Weeks

Add to Cart

Add to Wishlist

The 70E060-113F3536/K found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Bray Valves 70-0060-113F3-536K Series 70 Industrial Electric Actuator 24V 2Pos 60sec 600lb	70-0060-113F3-536K Brand Bray

Add to Cart

Add to Wishlist

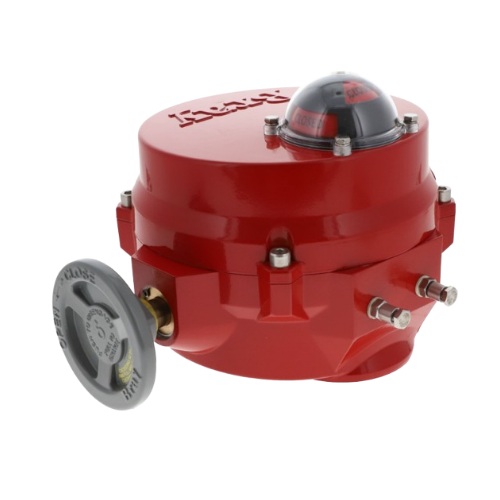

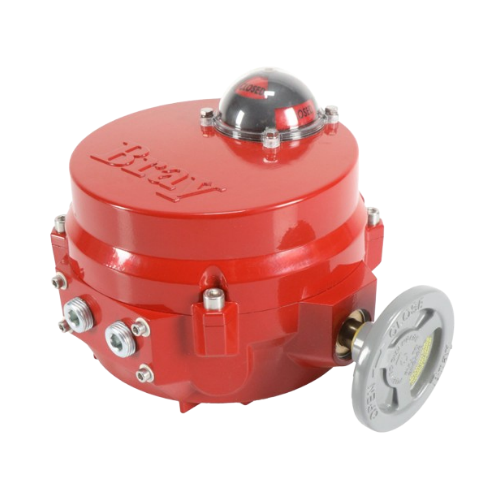

The Bray Valves 70E060-113F3536/K is a quarter-turn electric actuator with manual override for use with a quarter-turn valve with up to 600 pounds per inch (68 Nm) of torque and a 60-second operating speed. The electric actuator operates on 24V and comes with 2 limit switches.

This Bray Vales Series 70 actuator is constructed of die-cast aluminum and features stainless steel fasteners. It is designed with user required readily accessible components placed for easy access. These include an indicator shaft assembly, limit switches, terminal strips, torque switches, heater, and electronic controllers are all placed here for easy access.

Trim	Standard Bray Red
Valve Compatibility	Quarter Turn Valve
Motor Insulation	Class B
Ambient Temperature	-29°C to 65°C (-20°F to 150°F)
Voltage	24VAC/VDC
Speed	60 seconds
Output Torque	600 in-lb (68 Nm)
Controller	On/Off NXT Controller
Enclosure Ratings	NEMA 4, 4x, and IP65, IP67
Approvals	CE approved

Download Product Information:

Bray Valves Series 70 Electric Actuator Technical Datasheet

Bray Valves Series 70 Electric Actuator User Manual
