Camstat Henry S-6311 Discharge Line Muffler 1-1/8"

Name: Camstat Henry S-6311 Discharge Line Muffler 1-1/8"
Brand: Camstat-Henry Technologies
SKU: S-6311
Price: 97.68 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Camstat Henry S-6311 Discharge Line Muffler 1-1/8"

SKU: S-6311

Tariff HS Code: 90330000

Brand:

Rating:

Quantity	Price	Stock
3 Usually Ships 5-6 Weeks	$97.68 /ea	3

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

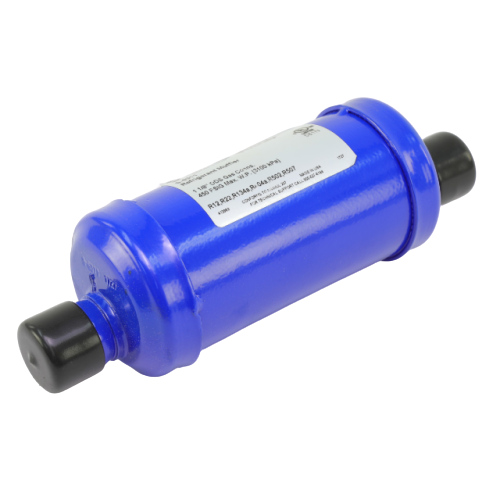

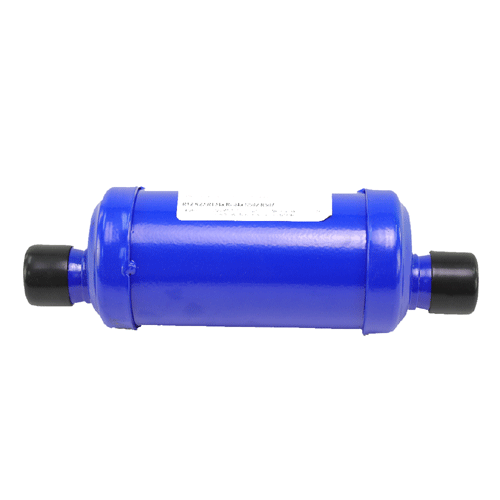

The Camstat Henry Technology S-6311 Discharge Line Muffler reduces pressure pulsations downstream of the Compressor. The Muffler is designed to be installed directly after the compressor. Henry Technologies’ Discharge Line Mufflers are suitable for use with HCFC and HFC refrigerants, and their associated oils, as well as other industrial fluids non-corrosive to steel and copper. The Muffler reduces noise caused by gas pulsations, by allowing the gas to expand inside muffler chambers. Mufflers have internal baffles which are designed to dampen and smooth out low and high-frequency compressor gas sound waves.

Features:

ODS connections
Sound reduction
Bi-directional flow
Robust design

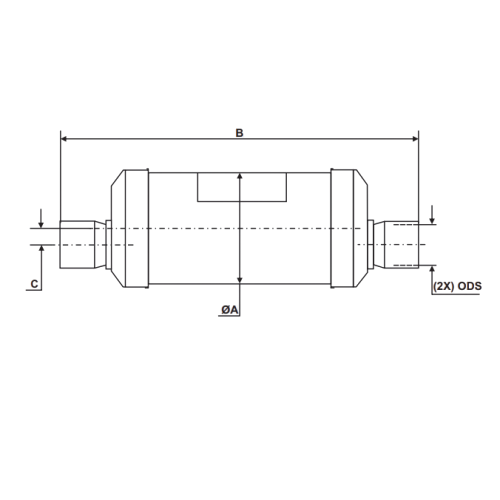

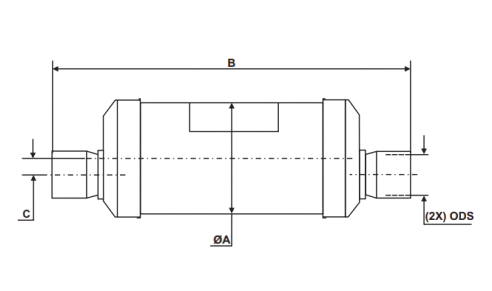

Model No.	ODS Size (inch)	Dimensions (inch)			Weight (lbs)
S-6311	1 1/8	A	B	C	2.91
		3.0	9.69	0.44

Maximum Working Pressure	451 PSI (31 Bar)
Allowable Operating Temperature	+32Â°F to +250Â°F (0Â°C to +121Â°C )
Body Material	Carbon Steel
Connection Material	Plated Carbon Steel
Approvals	UL, C-UL

Download Product Information:

Camstat Henry Discharge Line Muffler Technical Datasheet
