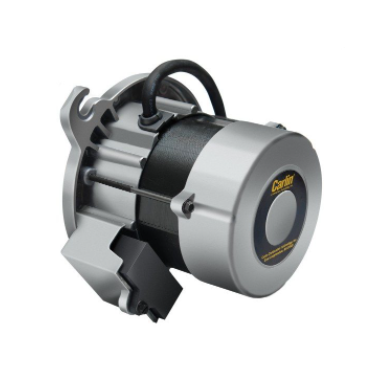

Carlin 98611S Service PSC Motor 1/6 HP

Use Carlin PSC motors for all replacement motors on oil and gas burners.  The Carlin PSC motor design allows air to flow through the motor into the blower housing, providing necessary cooling.  The high running torque of the PSC design ensures more consistent air flow to the burner head. Perform a combustion test with the new motor installed, and set the air adjustments as needed to provide the CO2 (O2 ) specified in the appliance manual.  Thermal overload — Overload will trip after approximately 3 minutes of running at locked rotor condition. Switch will cool and reset automatically.

All Carlin PSC motors are cast aluminum and Class A insulation.  The Carlin PSC Motor utilizes a capacitor to assist startup and run of the motor. This eliminates the need for a start switch used in the split phase motor. The Carlin motor capacitor is field replaceable for ease of service.  The Carlin PSC Motor has sealed ball bearings – not sleeve bearings.  The ball bearings are sealed and permanently lubricated – no oiling required.

Ball bearing design eliminates much of the end play of typical motor shafts, and allows for more consistent air flow to the combustion head.  Automatic thermal overload protection system – far more tolerant of overloads than manual reset configurations.  Automatic reset eliminates nuisance service calls caused by manual overload reset switch failures and overloads due to temporary voltage fluctuations.  The motor capacitor is located for convenient mounting to any burner with or without an electrical box over the motor.  Electrical leads are long enough for easy installation on any manufacturer’s burner.
