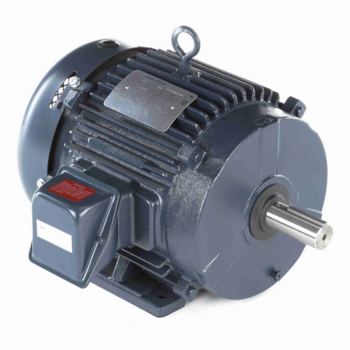

Century Motors TE143 Century Three Phase TEFC General Purpose Motor 215T Frame 10 Hp 1800 RPM 208-230/460 V

Century Motors TE143 Century Three Phase TEFC General Purpose Motor 215T Frame 10 Hp 1800 RPM 208-230/460 V
Images for general purposes only. Actual may be different than depicted.
Century Motors TE143 Century Three Phase TEFC General Purpose Motor 215T Frame 10 Hp 1800 RPM 208-230/460 V

Century Motors TE143 Century Three Phase TEFC General Purpose Motor 215T Frame 10 Hp 1800 RPM 208-230/460 V

SKU: TE143
Rating:
Quantity Price Stock
Usually Ships 3-4 Days
Usually Ships 3-4 Days
$752.51     /ea
Usually Ships 3-4 Days

Shipping Note

Ships by Truck (LTL)

0
$0.00
0
$0.00
0
TE143
Century® Three Phase TEFC General Purpose Motors

The TE Series is a low voltage generaly purpose three phase totally enclosed fan cooled motor for inverter duty 10:1 variable torque and 10:1 constant torque.

Features:

• Rigid Base
• 2, 4 & 6 Pole
• 1 - 200 HP
• NEMA Premium
• Class F Insulation System
• Inverter Duty
• 1.15 Service Factor
• 50/60 Hz (50 Hz @ next lower HP, 1.15 SF)
• CE
• CSA
• UL Approvals
• 40° C Ambient
• IP44
• F1/F2 Mounting
• Rolled Steel Construction or Cast Iron as noted
Horsepower 10 HP
Frequency 60 Hz
Duty Continuous Duty
Frame 215T
Voltage 208-230/460V
Speed 1800 RPM
# of Phases 3-Phase
Enclosure TEFC
Ambient Temperature 40C
