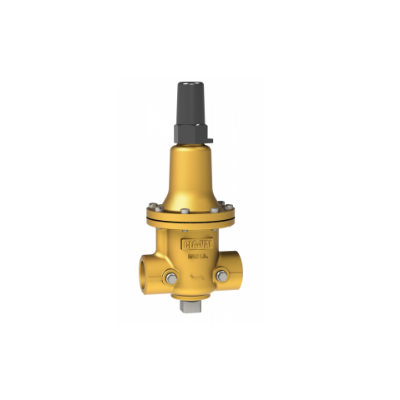

Cla-Val 21064202H Pressure Reducing Valve 1" 40-200 PSI 65 GPM

Cla-Val 21064202H Pressure Reducing Valve 1" 40-200 PSI 65 GPM
Images for general purposes only. Actual may be different than depicted.
Cla-Val 21064202H Pressure Reducing Valve 1" 40-200 PSI 65 GPM

Cla-Val 21064202H Pressure Reducing Valve 1" 40-200 PSI 65 GPM

SKU: 21064202H
Usually Ships 1-2 Weeks
Rating:
$1,339.57 /ea
0
$0.00
0
$0.00
0
Cla-Val 21064202H Pressure Reducing Valve 1" 40-200 PSI 65 GPM

The Cla-Val Model 55B-60 Pressure Relief Valve is a direct-acting, spring loaded, diaphragm type relief valve. The valve may be installed in any position and will open and close within very close pressure limits. The bottom plug may be removed and installed in the inlet to convert it to an angle pattern flow path.

The Model 55B-60 is normally held closed by the force of the compression spring above the diaphragm. When the controlling pressure applied under the diaphragm exceeds the spring setting, the disc is lifted off its seat, permitting flow through the control. When control pressure drops below the spring setting, the spring forces the control back to its normally closed position. The controlling pressure is applied to the chamber beneath the diaphragm through an internal passage. A gauge port is provided for accurate pressure setting.

Pressure adjustment is done by turning the adjusting screw to vary the spring  load on the diaphragm. The 55B-60 is available in pressure ranges suited to agency approval tests. To prevent tampering, the adjustment cap can be wire sealed by using the lock wire holes provided in the cap and cover.

Features:

  •  Available sizes 1/2”, 3/4” and 1”
  •  Use in High-Rise Buildings, Industrial Facilities and Municipal Water Systems
  •  Direct Acting - Precise Pressure Control
  •  Drip Tight Closure
  •  No Packing Glands or Stuffing Boxes
  •  Globe or Angle configurations available
  •  Sensitive to Small Pressure Variations
  •  Meets low lead requirements
  •  Available in Nickel Aluminum Bronze and Stainless Steel
Size 1/2", 3/4" and 1" Threaded NPT
Temperature Range Water, Air: to 180°F Max
Pressure Rating Cast Bronze 400 psi Max. Stainless Steel 400 psi Max
Adjustment Ranges 0 to 75 psi • 20 to 200 psi • 100 to 300 psi
Other Materials Available on special order

Following are the Attached files for this product:

Cla-Val 21064202H Pressure Reducing Valve Data Sheet
