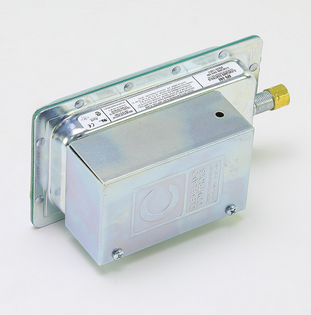

Cleveland Controls AFS-240 Air Pressure Switch

Name: Cleveland Controls AFS-240 Air Pressure Switch
Brand: Cleveland Controls
SKU: AFS-240
Price: 64.23 USD
Availability: OutOfStock

Cleveland Controls AFS-240 Air Pressure Switch

SKU: AFS-240

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$64.23 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Cleveland Controls AFS-240 Air Pressure Switch

The Model AFS-240 is a general purpose proving switch designed for HVAC and Energy Management applications. It may be used to sense positive, negative, or differential air pressure.

The plated housing contains a diaphragm, a calibration spring and a snap-acting SPDT switch. The sample connections located on each side of the diaphragm accept .25'' OD metallic tubing via the integral compression ferrule and nut. An enclosure cover guards against accidental contact with the live switch terminal screws and the set point adjusting screw. The enclosure cover will accept a .5'' conduit connection.

Mounting Position	Mount with the diaphragm in any vertical plane
Set Point Range	0.05 Â± 0.02" w.c. to 12.0"w.c.
Field Adjustable Range	Operate 0.07" to 12.0" W.C.; Release 0.04" to 11.2" W.C.
Maximum Pressure	0.03 bar
Operating Temperature Range	-40F to 180F (-40C to 82C)

Download Product Information:

Cleveland Controls AFS-240 Air Pressure Sensing Switch Technical Data
