Cleveland Controls AFS-293 Air Pressure Sensing Switch

Name: Cleveland Controls AFS-293 Air Pressure Sensing Switch
Brand: Cleveland Controls
SKU: AFS-293
Price: 63.41 USD
Availability: InStock
Rating: 4 (1 reviews)

Images for general purposes only. Actual may be different than depicted.

Cleveland Controls AFS-293 Air Pressure Sensing Switch

SKU: AFS-293

Brand:

Rating: (1)

Quantity	Price	Stock
3 Usually Ships 1-2 Weeks	$63.41 /ea	3

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Cleveland Air Pressure Sensing Switch

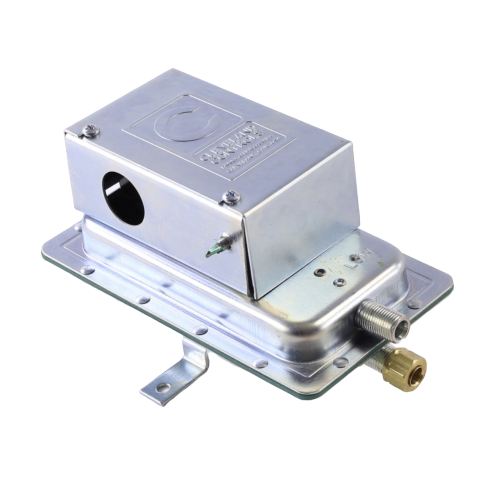

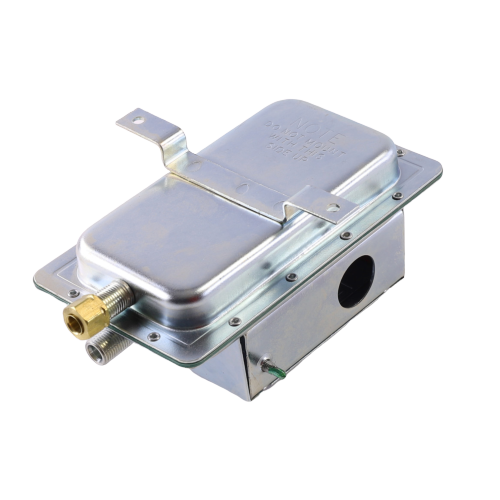

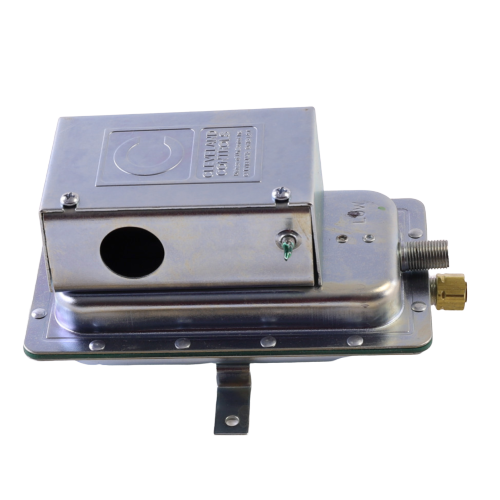

The Cleveland AFS-293 Air Pressure Sensing Switch is a device used to sense positive, negative, or differential air pressure for HVAC and Energy Management applications. The plated housing contains a diaphragm, a calibration spring, and a snap-acting SPDT switch. The sample connections located on each side of the diaphragm accept ¼" OD metallic tubing via the integral compression ferrule and nut. An enclosure cover guards against accidental contact with the live switch terminal screws and the set point adjusting screw. The enclosure cover will accept a ½" conduit connection.

Conduit Opening	â…ž" diameter opening accepts Â½" conduit
Measured Media	Air, or combustion by-products that will not degrade silicone
Contact Arrangement	SPDT
Operating Temperature Range	-40F to 180F (-40 to 82C)
Maximum Pressure	Â½ psi (0.03 bar)
Set Point Range	0.05 Â± 0.02" w.c. to 12.0"w.c.

Download Product Information:

Cleveland Controls AFS-293 Model Technical Datasheet
