Cleveland Controls DDP-106-299X Air Flow Switch

Cleveland Controls DDP-106-299X Air Flow Switch
Images for general purposes only. Actual may be different than depicted.

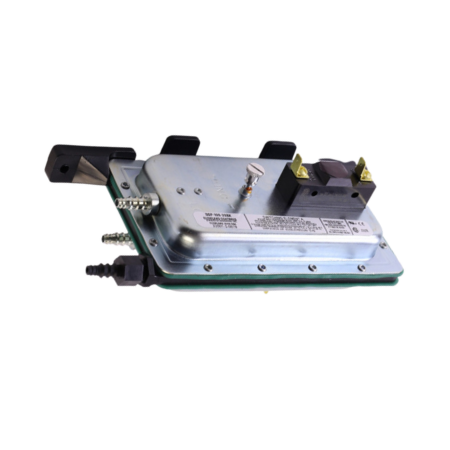

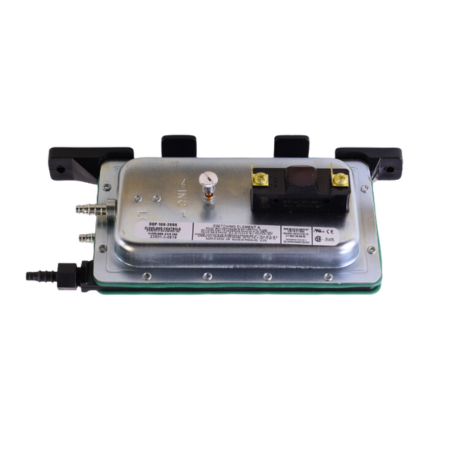

Cleveland Controls DDP-106-299X Air Flow Switch Cleveland Controls DDP-106-299X Air Pressure Sensing Switch

Cleveland Controls DDP-106-299X Air Flow Switch

SKU: DDP-106-299X
Rating:
Quantity Price Stock
10
Usually Ships 1 - 2 Weeks
$118.41     /ea
10
0
$0.00
0
$0.00
0
DDP-106-299X
The Cleveland Controls DDP-106-299X is an airflow pressure sensing switch that operates with 115-277 VAC at a 60 Hz power supply.  UL and CSA Listed.

The airflow switch monitors the air pressure or flow rate within the system and sends a signal to open and close once the set pressure is reached.

This component provides dual switching action that is separately operated.  It features independently adjustable SPDT snap-acting switches.

The DDP-106-299X is suitable for HVAC and Energy Management applications.  The diaphragm is mounted vertically on a common foot bracket.
Mounting Position Diaphragm Vertical
Foot Bracket Material Cycolac® T4500
Operating Temperature Range -40 to 80°C (-40 to 176°F)
Approvals UL and CSA Listed
Set Point Range .05 ± .02 to 2.0” WC
Measured Media Air
Life Cycle 100,000 Cycles Minimum at 1/2 psi
Electrical Rating 300 VA Pilot Duty at 115 to 277 VAC (60 Hz)
Contact Arrangement SPDT
Electrical Connections 90º Quick-Connect Terminals
