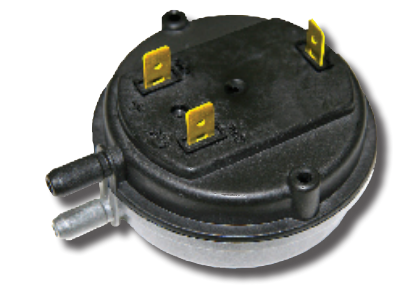

Cleveland Controls NS2-0000-01 OEM Pressure Sensing Switch

Cleveland Controls NS2-0000-01 OEM Pressure Sensing Switch
Images for general purposes only. Actual may be different than depicted.
Cleveland Controls NS2-0000-01 OEM Pressure Sensing Switch

Cleveland Controls NS2-0000-01 OEM Pressure Sensing Switch

SKU: NS2-0000-01
Rating:
Quantity Price Stock
166
Usually Ships 1-2 Weeks
$45.72     /ea
166

The NS2-0000-01 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Lennox 10K72 Pressure Switch 65324800 10K72

Brand Lennox
Lennox 10K72 Pressure Switch 65324800
Honeywell IS22010051F5052 .1-5" wc PRESSURE SWITCH IS22010051F5052

Brand Honeywell
Honeywell IS22010051F5052 .1-5" wc PRESSURE SWITCH
0
$0.00
0
$0.00
0
NS2-0000-01
Cleveland Controls NS2 OEM Air Pressure Sensing Switches with Fixed Set Point

Series NS2™ Air Flow Pressure Sensing Switches are designed with sturdy, contaminant-free construction, to provide low cost, high accuracy and reliability. NS2 switches offer a narrow switching differential and low set point tolerance over a wide operating temperature and set point range. They can be used to sense positive, negative or differential air pressure. Factorycalibrated set points are available from 0.05″ to 10.0″w.c.

The glass-filled polycarbonate body of the switch provides a high degree of stability and accommodates many sample line connector options. The high and low pressure ports are color-coded for ease of identification. Port, bracket, and terminal orientations can be specified. The integral snap-acting switch mechanism (patent pending) is available in SPNO, SPNC, and SPDT terminal configurations.

An optional bleed hole is available, as well as numerous standard and custom mounting brackets.

This pressure switch can be set at normally open and at normally closed.

Operating Range 0.05" to 10" W.C.
Maximum Pressure Rating 14" W.C.
Mounting Standard diaphragm: vertical or custom angle.
Operating Temperature -40F to 190F (-40C to 88C)
Sample Line Connections Black positive. Gray negative. Many configurations are available.
Sample Medium Air and byproducts of combustion that will not degrade silicone or polycarbonate.
Product Life 100,000 cycles minimum
Electrical Rating SPDT, SPST Electrical load: 1/10 HP @120 to 277 Vac; 28 VA pilot duty @ 24 Vac; 125 VA pilot duty @ 120 Vac. SPST Electrical load: 5 Amps resistive @ 24, 120 to 277 Vac. Optional Gold Contacts: .15 Amp resistive @ 24Vac or Vdc.
Contact Arrangement SPNO, SPNC, SPDT.
Approvals UL, CUL, CSA, CE, Australian Gas Assoc.

Download Product Information:

Series NS2 OEM Air Pressure Switches
