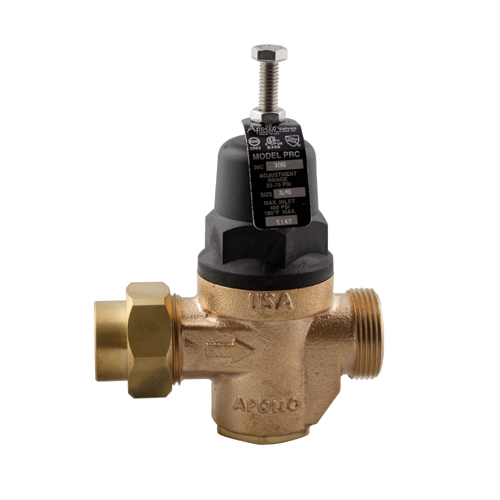

Conbraco 36C-105-01 Pressure Reducing Valve 1" Single Union 25-75psi

Conbraco 36C-105-01 Pressure Reducing Valve 1" Single Union 25-75psi
Images for general purposes only. Actual may be different than depicted.
Conbraco 36C-105-01 Pressure Reducing Valve 1" Single Union 25-75psi

Conbraco 36C-105-01 Pressure Reducing Valve 1" Single Union 25-75psi

SKU: 36C-105-01
Rating:
Quantity Price Stock
1
Usually Ships 1-2 Weeks
$289.40     /ea
1
0
$0.00
0
$0.00
0
36C-105-01
Apollo® Model PRC (36C Series) Pressure Reducing Valves are designed to protect non-potable water distribution systems by automatically controlling excessive pressure changes. The valves integral thermoplastic cage provides maximum corrosion resistance. Designed for easy in-line servicing with bottom cleanout access to seat disc and strainer.

Features:

• Lead Free Option Available
• Balanced Piston Design
• Sealed Spring Cage Vault
• SS Adjusting Screw & Nut
• Built-in Thermal Expansion By-Pass
• Easy Access to Seat Disc and SS Strainer
• Factory Preset at 50 psi
• NPT, Solder, PEX, CPVC, Press Connections
• 100% Manufactured in USA
Maximum Supply Pressure 400 psig
Standard Temperature Range 33F to 180F
Maximum Set Pressure (Standard) 75 psig
Maximum Set Pressure (High) 125 psig
Approvals ASSE 1003-2009; CSA B356
