Conbraco 78RV-224-80 Water Heater Shutoff Thermal Expansion Control Valve 3/4" Sweat 80psi Control Valve Outlet Hose Barb Fitting

Conbraco 78RV-224-80 Water Heater Shutoff Thermal Expansion Control Valve 3/4" Sweat 80psi Control Valve Outlet Hose Barb Fitting
Images for general purposes only. Actual may be different than depicted.
Conbraco 78RV-224-80 Water Heater Shutoff Thermal Expansion Control Valve 3/4" Sweat 80psi Control Valve Outlet Hose Barb Fitting Conbraco 78RV-224-80 Water Heater Shutoff Thermal Expansion Control Valve Hose Barb Fitting

Conbraco 78RV-224-80 Water Heater Shutoff Thermal Expansion Control Valve 3/4" Sweat 80psi Control Valve Outlet Hose Barb Fitting

SKU: 78RV-224-80
Rating:
Quantity Price Stock
Usually Ships 2 - 4 Weeks
Usually Ships 2 - 4 Weeks
$160.01     /ea
Usually Ships 2 - 4 Weeks
0
$0.00
0
$0.00
0
78RV-224-80

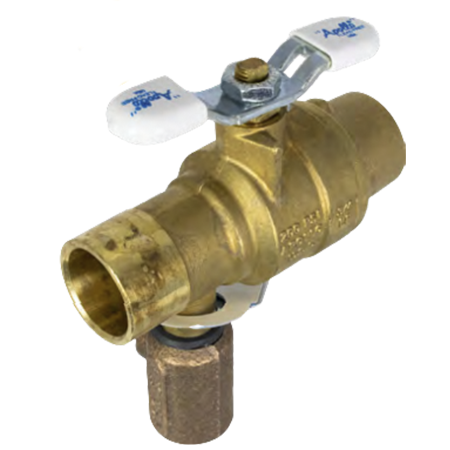

The 78RV-224-80 is a water heater shutoff thermal expansion control valve that has a 3/4" sweat connection size.  It is made of bronze construction that can handle up to 80 psi maximum pressure and 210°F maximum temperature.  NSF and CSA-certified.

The 78RV series thermal expansion relief valve is suitable for water heaters and expansion tanks in residential plumbing applications.   The unit is constructed with stainless steel spring and silicone rubber that prevents leakage.

The 78RV-224-80 is quick and easy to install with a 3/8" hose barb relief connection.
Connection Size 3/4" Sweat
Relief Connection Size 3/8" Hose Barb
Maximum Pressure 80 psi
Body Material Bronze
Maximum Temperature 210°F
Approvals CSA-certified
Ball Maximum Pressure 400 psi
