Copeland Compressor CF09K6E-TF5-945 Compressor 200-230V 3-Phase 09,000Btu R-404A

Copeland Compressor CF09K6E-TF5-945 Compressor 200-230V 3-Phase 09,000Btu R-404A

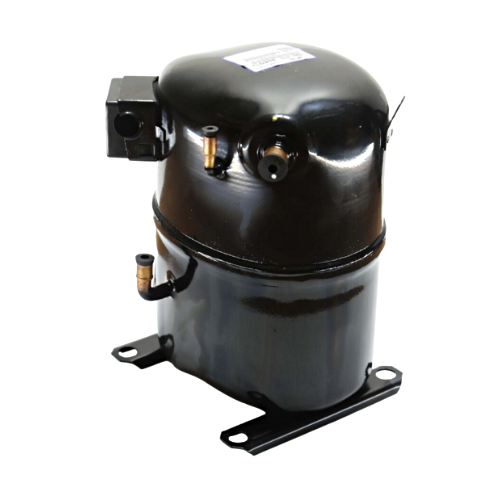

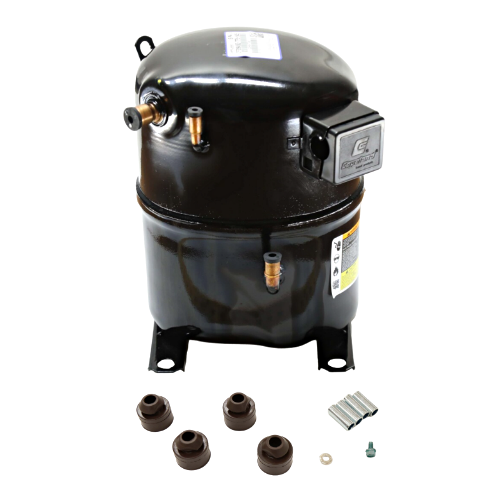

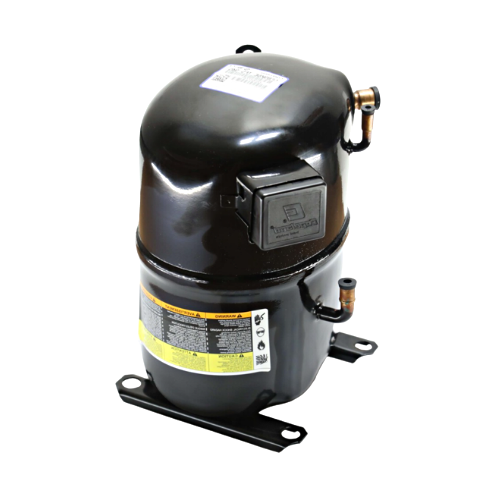

Images for general purposes only. Actual may be different than depicted.
Copeland Compressor CF09K6E-TF5-945 Compressor 200-230V 3-Phase 09,000Btu R-404A Copeland CF09K6E-TF5-945 Refrigeration Compressor Copeland CF09K6E-TF5-945 Low Temperature Refrigeration Compressor

Copeland Compressor CF09K6E-TF5-945 Compressor 200-230V 3-Phase 09,000Btu R-404A

SKU: CF09K6E-TF5-945
Rating:
Quantity Price Stock
8
Usually Ships 1-2 weeks
$4,400.82     /ea
8

Shipping Note

Ships via LTL ( Truck )

The CF09K6E-TF5-945 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Copeland Compressor CF09K6E-TF5-970 Compressor 200-230V 3-Phase 09,000Btu R-404A CF09K6E-TF5-970

Brand Copeland Compressors
Copeland Compressor CF09K6E-TF5-970 Compressor 200-230V 3-Phase 09,000Btu R-404A
*Warranty Policy - Compressors
0
$0.00
0
$0.00
0
CF09K6E-TF5-945
The Copeland CF09K6E-TF5-945 is a compressor for low-temperature refrigeration.  This 3-phase compressor uses HFC refrigerants which are R-404A and R-507. The cooling capacity rate is 9,620 Btu and operates at a power rating of 200/230V on 60Hz.

The CF09K6E-TF5-945 has a 3/4" stub suction and a 1/2" stub discharge connection.  The mass flow is rated 220 lbs/hr and 4.10 Btu/Wh for the Energy Efficiency Ratio.

The Copeland CF Low-Temperature Compressors are designed to provide reliability and quality performance in refrigeration applications.
Discharge Size 1/2" stub
Suction Size 3/4" stub
Capacity 9,620 BTU/hr
Suction Connection Stub
Number of Phases 3-Phase
Power 2370 Watts
Current 7.60 Amps
Voltage 200/230V
Application Low Temperature
Refrigerants R-404A and R-507
