Danfoss 060-110891 Kp36 Spdt Pressure Switch

Danfoss 060-110891 Kp36 Spdt Pressure Switch
Images for general purposes only. Actual may be different than depicted.

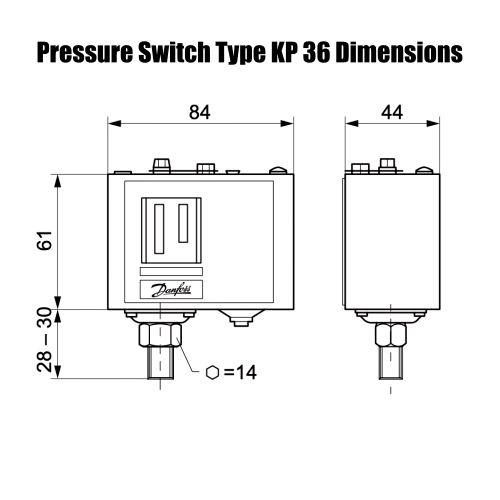

Danfoss 060-110891 Kp36 Spdt Pressure Switch Danfoss Pressure Switch Type KP 36 Dimensions

Danfoss 060-110891 Kp36 Spdt Pressure Switch

SKU: 060-110891
Rating:
Quantity Price Stock
35
Call 1-866-494-4610 for stock
$98.06     /ea
35

The 060-110891 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Danfoss 060-110866 Kp36 Pressure Switch 060-110866

Brand Danfoss
Danfoss 060-110866 Kp36 Pressure Switch
0
$0.00
0
$0.00
0
060-110891

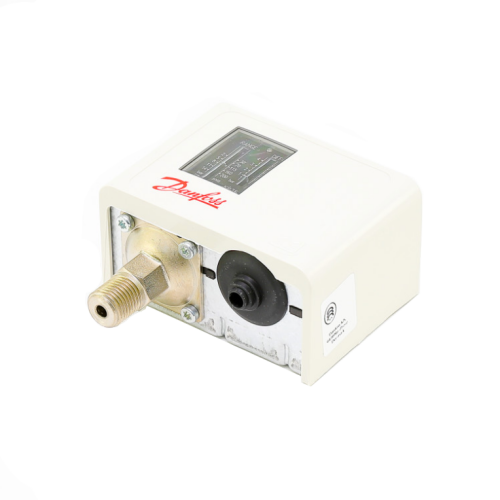

Danfoss 060-110891 is a Single Pole Double Throw Pressure Switch with a 2-14 BAR setting range.  This KP36 type switch has silver contact material and is used for gaseous media.


The Danfoss KP pressure switches are used in controlling, monitoring, and alarm systems for steam boiler and other heating equipment.  They have a wide setting range and are suitable for alternating current and direct current.  Easy to install pressure switches and space-friendly with its small dimensions.




Pressure Switch Model No. Contact Load Silver for Type KP-36
060-110891 Alternating Current Direct Current
AC-1: 16 A, 400 V
AC-3: 16 A, 400 V
AC-15: 10 A, 400 V
DC-13: 12 W, 220 V
Enclosure rating IP30
Electrical Connection Size 6-14 mm
Maximum Working Pressure 17.0 bar (245 psig)
Maximum Test Pressure 22.0 bar (319.0 psig)
Pressure Connection Type G - 1/4 Male

Download Product Information:

Danfoss KP Pressure Switch Technical Datasheet
