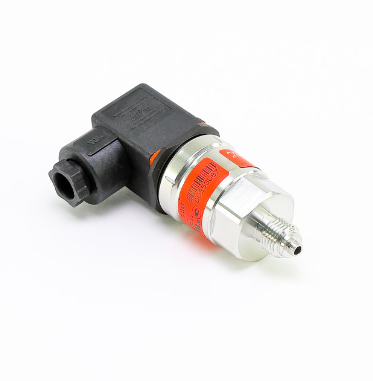

The Danfoss 060G1107 is a compact pressure transmitter for general industrial applications.

The compact pressure transmitter, type MBS 3000, is designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. The compact heavy duty pressure transmitter MBS 3050 with integrated pulse-snubber is designed for use in hydraulic applications with severe medium influences like cavitation, liquid hammer or pressure peaks and offers a reliable pressure measurement, even under harsh environmental conditions.

The flexible pressure transmitter programme covers different output signals, absolute or gauge (relative) versions, measuring ranges from 0 – 1 to 0 – 600 bar. A wide range of pressure
and electrical connections are available.

Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.

Features:

• Designed for use in severe industrial and hydraulic environments
• Resistant to cavitation, liquid hammer and pressure peaks (MBS 3050)
• Enslosure and wetted parts of acid-resistant stainless steel (AISI 316L)
• Pressure ranges in relative (gauge) or absolute from 0 up to 600 bar
• All standard output signals:
  • 4 – 20 mA
  • 0 – 5 V
  • 1 – 5 V
  • 1 – 6 V
  • 0 – 10 V
  • 1 – 10 V
• A wide range of pressure and electrical connections
• Temperature compensated and laser calibrated
• For use in zone 2 explosive atmospheres
