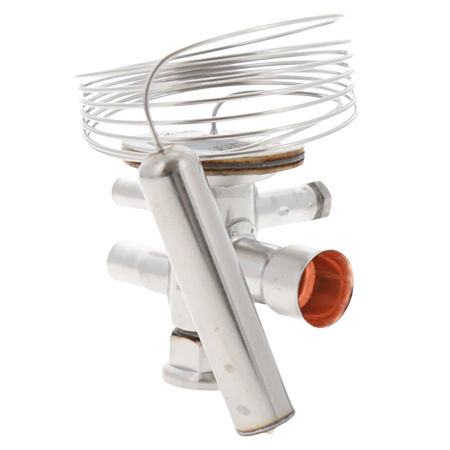

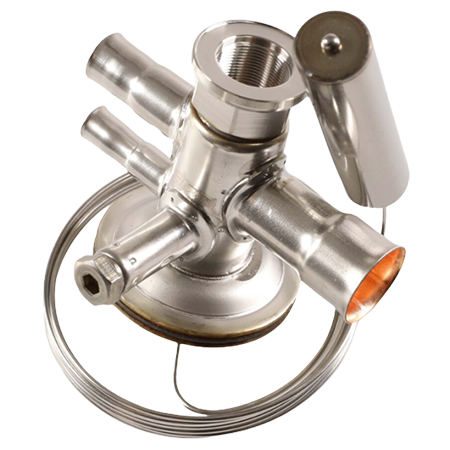

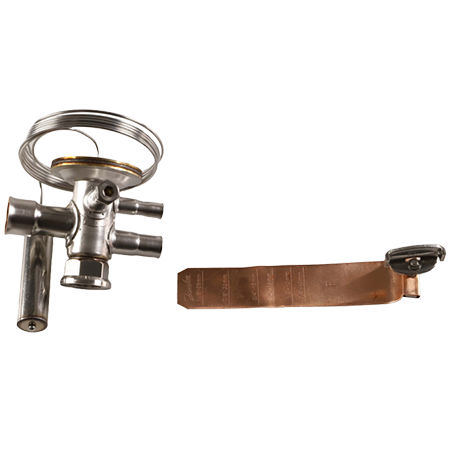

Danfoss 068U4304 Thermostatic Expansion Valve 3/8" X 5/8"

Danfoss 068U4304 Thermostatic Expansion Valve 3/8" X 5/8"
Images for general purposes only. Actual may be different than depicted.
Danfoss 068U4304 Thermostatic Expansion Valve 3/8" X 5/8" Danfoss 068U4304 Thermostatic Expansion Valve -40 to 10°C Temperature Range Danfoss 068U4304 Thermostatic Expansion Valve 120 psi Maximum Pressure

Danfoss 068U4304 Thermostatic Expansion Valve 3/8" X 5/8"

SKU: 068U4304
Rating:
Quantity Price Stock
Usually Ships 1 - 2 Weeks
Usually Ships 1 - 2 Weeks
$128.65     /ea
Usually Ships 1 - 2 Weeks
0
$0.00
0
$0.00
0
068U4304
The 068U4304 is a thermostatic expansion valve that has a 3/8" inlet and 5/8" outlet connection size.  It has a -40 to 10°C temperature range and 120 psi (8.4 bar) maximum working pressure.

The TCAE thermostatic expansion valve is suitable for R404A and R507 refrigerants.  The unit is used to control the amount of refrigerant that flows into the evaporator.
Inlet Connection Size 3/8"
Outlet Connection Size 5/8"
Connection Type Solder or ODF
Maximum Working Pressure 120 psi (8.4 bar)
Temperature Range -40 to 10°C
Refrigerant Types R404A and R507
Equalization Size 1/4"
Type TCAE
Approvals UL-approved
