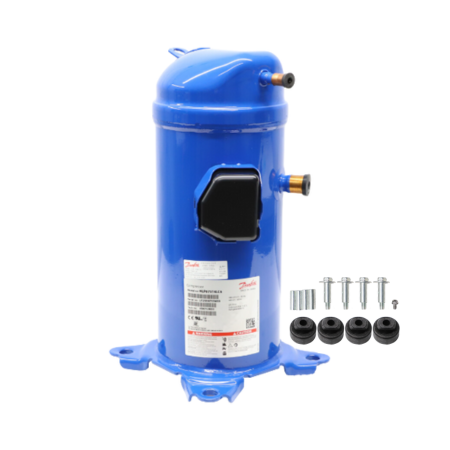

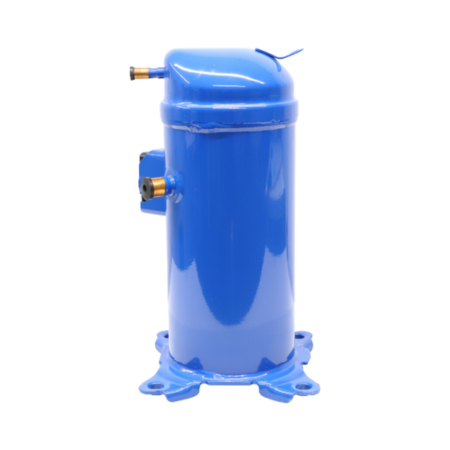

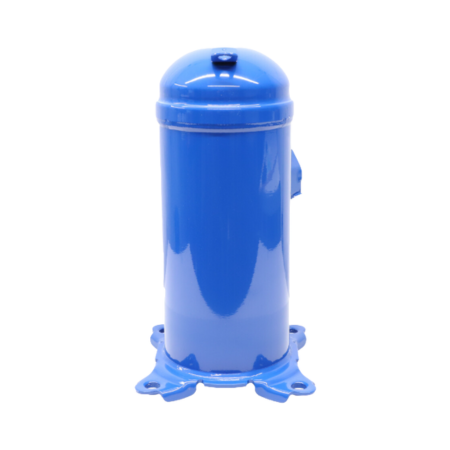

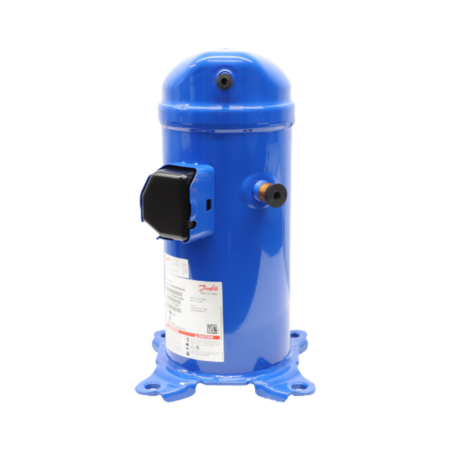

The Danfoss 121L1766 (HLP075T4LC6) is a 3-phase, light commercial scroll compressor designed for high-temperature air conditioning applications.  It operates at 380-415V, 50 Hz and 460V, 60 Hz, with a rotational speed of 2900 RPM at 50 Hz and 3500 RPM at 60 Hz.  CE Marked, UL Recognized, and UKCA certified for quality and safety compliance.

With a 6-ton cooling capacity, this compressor is optimized for systems operating between 45°F evaporating and 130°F condensing temperatures.  It features 1/2" ODF discharge and 7/8" ODF suction brazed connections, and comes with screw terminals for convenient installation.

Directly replaces Danfoss HLM075T4LC6, HLP075T4LC6, and Carrier SRH752AC models.  Additional features include an internal overload protector for motor safety, IP22 protection class for electrical enclosures, and compatibility with PVE oil and R22 or R407C refrigerants.
