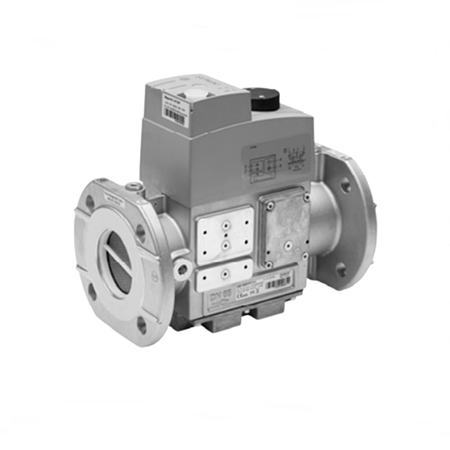

Dungs 267173 Dual Modular Valves Flanged version DMV 5125/11 eco 602

The DUNGS double solenoid valve DMV integrates two solenoid valves in one compact fitting. - Automatic shut-off valves as per DIN EN 161 Class A Group 2. - Two A valves in one housing - Double seat valves - High flow rates - Max. operating pressure up to 0.5 bar (50 kPa) - Fast closing - Fast opening (DMV/11 eco, DMV-D/11 eco) - Adjustable main volume (DMV-D/11 eco, DMV-DLE/11 eco) - DC solenoid - Low electric power consumption through power switching - Mountable closed position signal contact - Compact, light-weight

The DUNGS DMV 5…/602 ECO valve combines two normally closed, automatic shutoff valves in one compact housing, which can be wired independently or in parallel. Valve 1 (V1) of the DMV eco, and DMV-DLE eco series is fast opening and fast closing. Valve 2 (V2) of the DMV eco is fast opening, while V2 of the DMV-DLE eco is slow opening for smoother start-up conditions. Max. flow adjustment on V2 provides variable main flow on both models.

Double solenoid valves are used where two single valves were mounted previously. In connection with DUNGS gas regulators and additional components, a wide variety of regulating tasks can be performed. It does not contain any non-ferrous metals, suitable for gases of up to max. 0.1 vol.% H2 S, dry. Suitable for gases of families 1, 2, 3 and other neutral gaseous media

The DMV 5…/602 ECO valve is recommended for industrial and commercial gas consuming applications that require two safety shutoff valves in series. The DMV 5…/602 ECO valve is suitable for natural gas, propane, butane, air and other inert gases. Viton version is suitable for corrosive gases up to 100% Humidity and 1% H2S

Former Karl Dungs Inc Part Number 258-341NP
