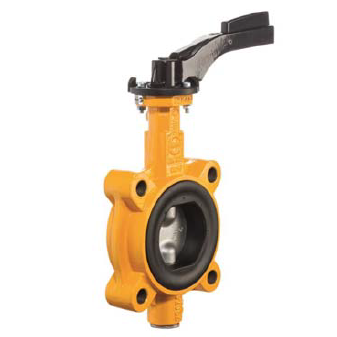

Dungs 266100 Lug Butterfly Valve 1-1/2" Manually Operated Cast Iron Body

Dungs 266100 Lug Butterfly Valve 1-1/2" Manually Operated Cast Iron Body
Images for general purposes only. Actual may be different than depicted.
Dungs 266100 Lug Butterfly Valve 1-1/2" Manually Operated Cast Iron Body

Dungs 266100 Lug Butterfly Valve 1-1/2" Manually Operated Cast Iron Body

SKU: 266100
Rating:
Quantity Price Stock
Usually ships 2-3 weeks
Usually ships 2-3 weeks
$401.42     /ea
Usually ships 2-3 weeks
0
$0.00
0
$0.00
0
266100
The butterfly valve is for manual shutoff suitable for natural gas, propane, butane, air and other inert gases. They can also be used on dry and clean landfill gas. 1-1/2” to 6” Lug Butterfly Valves in DN or ANSI flanged versions. DN40 to DN150 flanges PN16 as per DIN EN 1092 or 1-1/2” to 6” 150 lb ANSI flanges according to ASME B16.5. Lug Bolts: DIN Threaded Bolts & Studs required for DN butterfly valves. UNF Bolts and Studs Required for ANSI butterfly valves. Parts sold separately.
Maximum Operating Pressure 125 PSIG
Ambient Temperature Rating -4F to 140F (-20C to 60C)
Approvals CSA Approved
