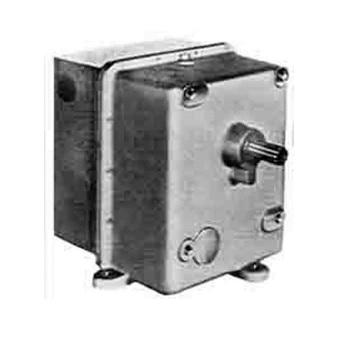

Karl Dungs Inc. Actuators are designed to operate dampers, butterfly valves and similar devices. Models are available for a variety of torques from 16 in. lb. to 450 in. lb. and control methods including two-position, position proportioning with slide-wire feedback, potentiometer proportioning and current-to-position proportioning. All models are UL listed and CSA Certified. -9... Position Proportioning 100 Ohm Slidewire Feedback. 90° (180° optional with 180° slidewire kit). Rotation when power is applied. Optional 4-20 mA Input with CP 8391-703 (part # 43118-4)
| Electrical Ratings | 120 Vac, 60 Hz |
|---|---|
| Enclosure Rating | NEMA Type 1 (NEMA Type 4 with AM-369 pat # 269240) |
| Ambient Temperature Rating | -40F to +130F (-40C to +54C) |
| Operating Mode | Potentiometer Slaved Proportioning, 100-1000 Ohm, Slidewire Feed Back ( requires AE 504, part # 269237 ) |
