The Ecobee EB-STATE6LP-01 Smart Thermostat Enhanced is designed to provide homeowners with efficient control over their HVAC systems, offering both comfort and energy savings. Compatible with most 24 VAC HVAC equipment including conventional furnaces and air conditioners (up to 2 stages of heating and cooling), heat pumps (up to 2 stages of heating and cooling with 1 stage auxiliary heat), boilers, and PTACs or fan coil units with up to three fan speeds. The thermostat also supports one-wire HVAC accessories like humidifiers, dehumidifiers, or ventilators (HRV/ERV).

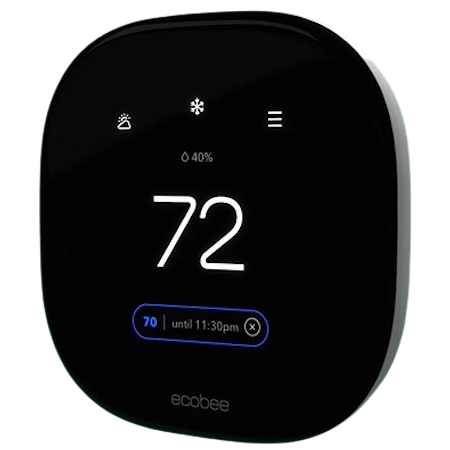

Featuring a 4" full-color touch screen LCD with a 540 x 540 pixel display, the thermostat incorporates advanced sensors for temperature, humidity, proximity (radar), and occupancy (radar) detection. These sensors enable the device to automatically adjust settings based on occupancy, contributing to energy efficiency and personalized comfort. Users can control the thermostat through various platforms, including iOS and Android apps, as well as Apple Watch.

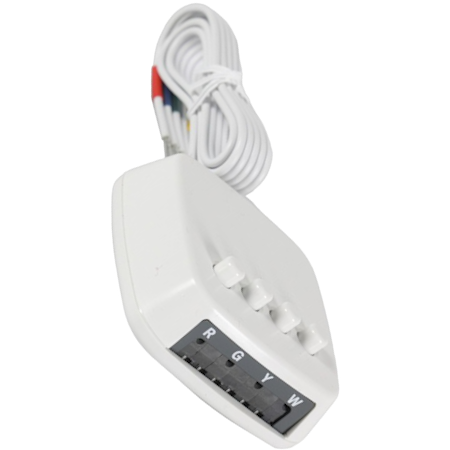

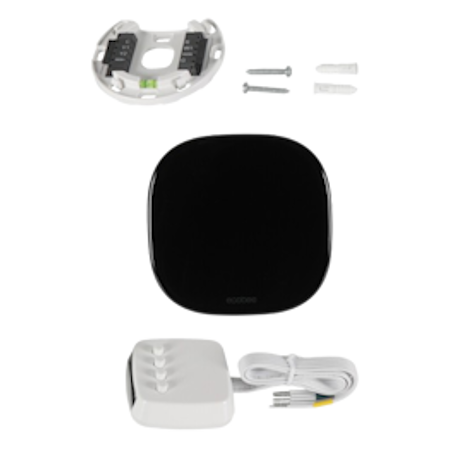

Installation is straightforward, as the device comes with all necessary components, such as screws, drywall plugs, a trim plate with a built-in adapter plate, a Power Extender Kit (PEK) for systems lacking a C-wire, wiring diagrams, and a quick start guide. The thermostat is hardwired, ensuring reliable operation without the need for charging or additional power sources. This replaces part number EB-EMSSI-01 Energy Management System Thermostat.
Display Size | 4" full-color LCD touchscreen |
---|---|
Display Pixels | 540 x 540 pixel |
Colors | Black front, white backing |
Thermostat sensors | Temperature, Humidity, Occupancy (Radar), Proximity (Radar) |
Voltage | 24 VAC |
Works with | Apple HomeKit, Amazon Alexa, Samsung SmartThings, IFTTT, and more |
Bandwidth | 15-20 MB/month (dependent on Alexa Voice Service usage) |
Power consumption | Up to 3.5 VA |
Display Humidity range | 20% to 90% RH |
Display Temperature Range | 40 to 100°F (5 to 37°C) |
