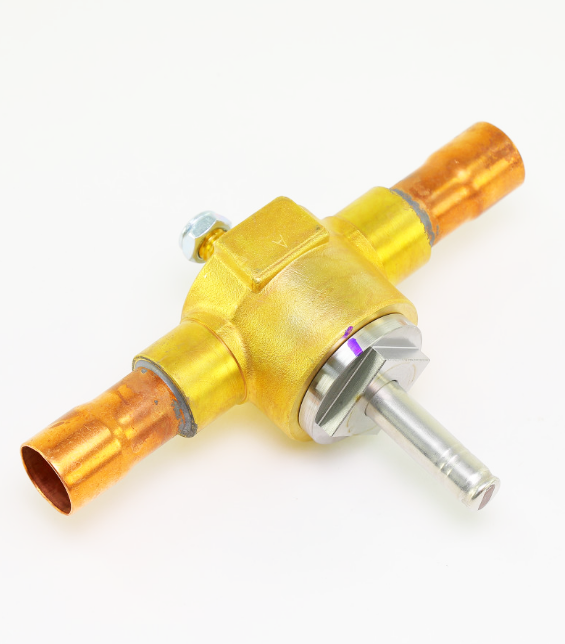

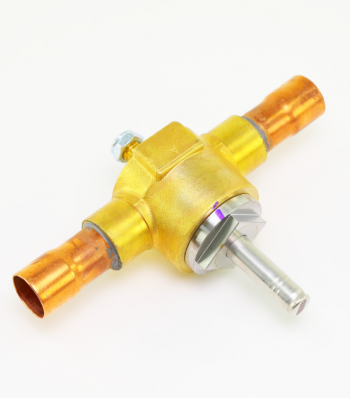

Emerson Flow Controls 066196 Solenoid Valve with Mounting Stud

Name: Emerson Flow Controls 066196 Solenoid Valve with Mounting Stud
Brand: Emerson Flow Control
SKU: 066196
Price: 123.25 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Emerson Flow Controls 066196 Solenoid Valve with Mounting Stud

SKU: 066196

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 Week Usually Ships 1 Week	$123.25 /ea	Usually Ships 1 Week

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Emerson Solenoid Valve Body

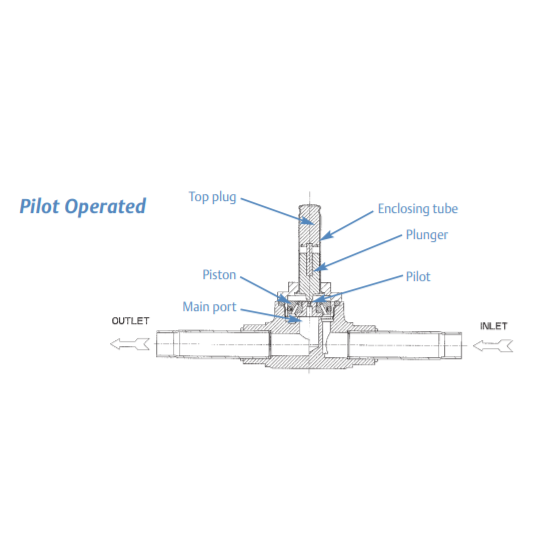

The 066196 is a 2-Way pilot operated refrigeration solenoid valve body with mounting stud. The valve is normally closed and has 7/8" sweat connections. The pilot operation happens when the plunger opens a pilot port and the pressure on top of the piston is released through the port creating a pressure imbalance. The pressure difference pushes the piston upward and opens the port. When the plunger drops it closes the port equalizing the pressure.

Features:

Suitable for all refrigerants, including R-410A
Used for liquid, discharge, or suction gas refrigerant service
One coil fits all valve sizes
Extended ends for easy installation (standard)
Long-life molded coils
PTFE O-ring for superior external sealing

Minimum Operating Pressure Drop	2 PSI
Maximum Working Pressure	680 PSI
Maximum Fluid Temperature	250F
Connection Size	7/8"
Approvals	UL # MP604
Valve Operation	2-Way Normally Closed
Refrigeration Type	R410A
Capacity	27.7 Ton
Model #	200RD9T7T

Download Product Information:

Emerson Solenoid Valve User Guide

Emerson 200D Solenoid Valve Catalog Page

Emerson 200D Solenoid Valve Installation Manual
