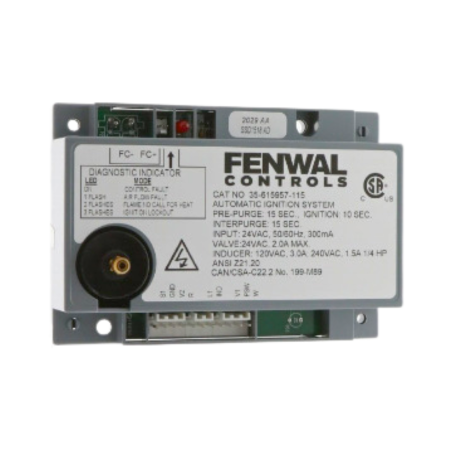

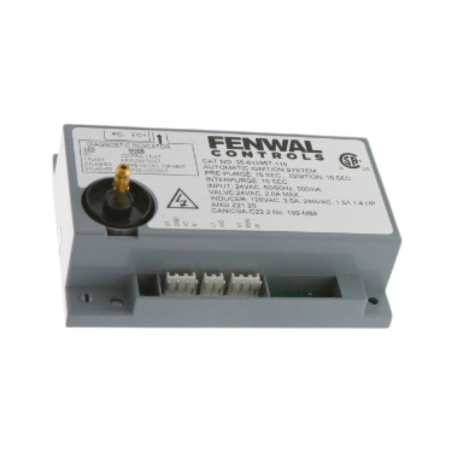

The 35-615957-115 is an ignition control module operating at 1/4Hp, 24V, 3A, and 50/60 Hz. It includes a 15-second pre-purge, a 15-second inter-purge, and a 10-second ignition period. CSA-certified, it meets industry safety and performance standards.
Features an LED diagnostic indicator that provides real-time status updates, including control faults, airflow faults, flame detection without a heat call, and ignition lockout. It enhances troubleshooting and system monitoring for improved reliability.
The 35-615957-115 serves as a direct replacement for part number 35-615925-115, ensuring seamless compatibility with the existing system. Upgrade your heating system today with this reliable ignition control!
| Voltage | 24V |
|---|---|
| Amperage | 3A |
| Horsepower | 1/4HP |
| Frequency | 50/60 Hz |
| Pre-Purge Time | 15-Seconds |
| Inter-Purge Time | 15-Seconds |
| Ignition Time | 10-Seconds |
| Approvals | CSA-certified |
By Travis
from Beaumont AB
Yes, I would recommend this product to a friend or co-worker
Was a replacement on a 20 yr old garage heater. Plug and play, worked like it was supposed to.
