The Series 35-75 controls are designed to perform many gas-fired 120 VAC appliance functions in a single control resulting in lower system cost. The Series 35-75 monitors the demand for heat, ignites and monitors the flame during heating.

The microprocessor circuit design provides precise, repeatable timing sequences for ignition times and purge times as well as multiple tries for ignition. The control will accommodate a variety of ignitor models up to 5 Amps.

FEATURES

• Safe Start - verifies no flame is present and proper control function before heat sequence begins
• Use with variety of 120 VAC hot surface ignitors up to 5 Amps

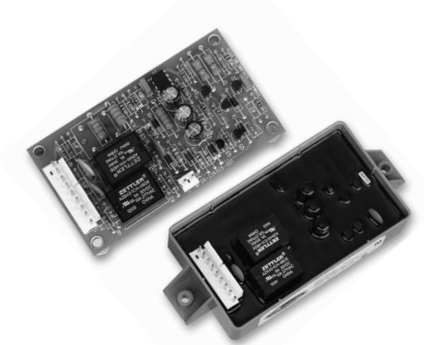

• Two Mounting Configurations
• Open Board with Stand-Off\'s - saves space and cost
• Potted - protection for washdown and vibration
• Multi Pin Connector - fast assembly
• 2 Trial for Ignition Options - 1 and 3 try
• 4 Trial for Ignition Times - 4, 7, 10 and 15 seconds (customized timings available)
• 2 Flame Sense Options - local or remote sense n Automatic One Hour Reset Option
• Flame current test pins - facilitates field service

APPLICATIONS

• Tube heaters
• Construction heaters
• Commercial cookers
• Any 120 VAC gas burner application under 400K BTU

Agency Certifications

Design certified by CSA International to CAN C22.2 #199-M89 and ANSI Z21.20 for Automatic Ignition Systems, including UL1998 software review.
