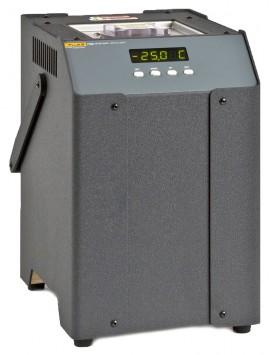

Worlds smallest portable calibration bath that can be transported with fluid in them. This model uses a fluid medium which eliminates the problems of fit and immersion issues.

Features

• World\'s smallest portable calibration baths can be transported with the fluid in them
• Stable to ±0.03°C or better, depending on the fluid you use
• Uniformity is ±0.02°C or better for low uncertainties using a reference thermometer
• Display accuracy has been improved to ±0.25°C for quick calibrations without a reference thermometer
• With a 48mm (1.9") diameter, 140mm (5.5") deep tank, user can calibrate any type of sensor including short, square, or odd-shaped sensors
• Problems of fit and immersion are virtually eliminated by using a fluid medium rather than a dry-block calibrator
• Micro-Baths are perfect for liquid-in-glass and bimetal thermometers
• All models have RS-232 ports, come with Interface-it software, and can be used with MET/TEMP II software
• Also included are contacts to calibrate a thermal switch, eight set-point memory storage, ramp-rate adjust, and over-temperature safety cutout
• Cold Micro-Baths are CFC-free as well as compressor-free

Applications

Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration
