GC Valves H211GF15N5EG5 Solenoid Valve 2-Way Normally Closed 3/4" NPT 12 VDC 250 psi

Name: GC Valves H211GF15N5EG5 Solenoid Valve 2-Way Normally Closed 3/4" NPT 12 VDC 250 psi
Brand: GC Valves
SKU: H211GF15N5EG5
Price: 205.59 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

GC Valves H211GF15N5EG5 Solenoid Valve 2-Way Normally Closed 3/4" NPT 12 VDC 250 psi

SKU: H211GF15N5EG5

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 3 - 4 Weeks Usually Ships 3 - 4 Weeks	$205.59 /ea	Usually Ships 3 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

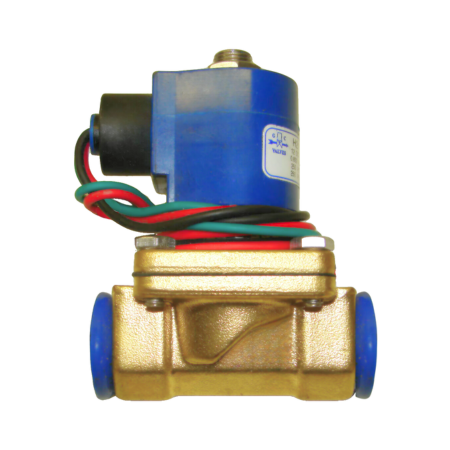

The GC Valves H211GF15N5EG5 is a 2-way normally closed solenoid valve. CE Marked and UL Recognized.

This valve has a brass body with a 3/4" pipe connection, a 3/4" orifice, and a 24” lead length. Equipped with a nitrile seal and a 1/2” conduit NEMA 4X housing.

This device operates at 10W, 0.83A, and 12 VDC power supply. Features a Class F coil that can handle up to 250 psi and 32 to 125°F temperature range.

Compatible with a wide range of media, including air/neutral gases, light oil, steam, and water. It can be mounted in any position, providing installation flexibility.

Pipe Connection	3/4" NPT
Operating Mode	2-Way Normally Closed
Housing	1/2" Conduit NEMA 4X
Coil Class	Class F
Seal Material	Nitrile
Body Material	Brass
Orifice Size	3/4"
Power Supply	10W, 0.83A, 12 VDC
Pressure Rating	250 psi
Valve Type	Diaphragm

Download Product Information:

GC Valves H21 Series Solenoid Valve Specification Sheet
