Henry Technologies SG-1208 Sight Glass 1" Npt Clear Lens with Float Ball

Henry Technologies SG-1208 Sight Glass 1" Npt Clear Lens with Float Ball
Images for general purposes only. Actual may be different than depicted.

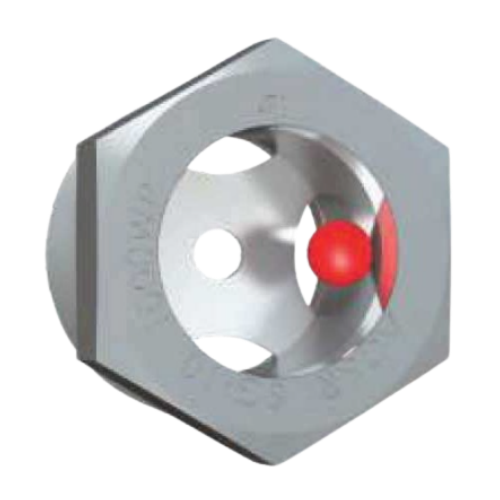

Henry Technologies SG-1208 Sight Glass 1" Npt Clear Lens with Float Ball Henry Technologies SG-1208 Sight Glass Dimensions Illustration

Henry Technologies SG-1208 Sight Glass 1" Npt Clear Lens with Float Ball

SKU: SG-1208
Tariff HS Code: 8418998060
Rating:
Quantity Price Stock
7
Call 1-866-494-4610 for stock
$28.80     /ea
7
0
$0.00
0
$0.00
0
SG-1208
Henry Technologies SG-1208 is a 1-inch NPT Sight Glass with Clear Lens and floating ball.

Henry Technologies SG-1200 Series NPT Sight Glasses are used in a variety of refrigeration and industrial applications.  This series features a hermetically sealed viewing lens, high-pressure rating up to 1000 PSI, and sturdy plated steel housing.  The Float Ball in SG-1200 Series is made of TPX plastic and does float in a fluid with >0.85 specific gravity.  This floating ball provides an easier inspection of fluid levels.  Also, the refrigerants that are suitable for this series are HFC and HCFC refrigerants.

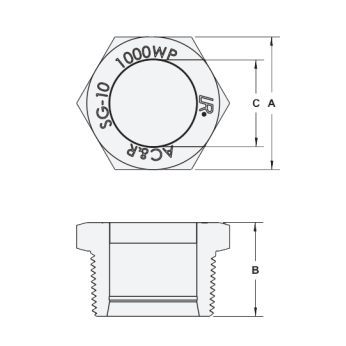

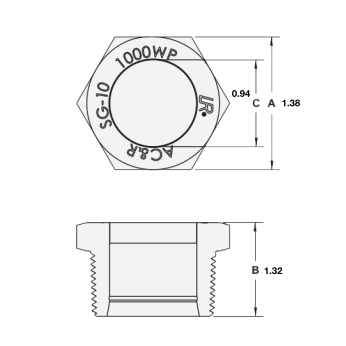

Henry Technologies SG-1208 Sight Glass Dimensions Illustration:



Part No. Sight Glass Clear with Ball Dimensions
  A B C
 SG-1208 1.38 1.32 0.94





Allowable Operating Temperature -20F to +300F (-29C to +149C)
Maximum Working Pressure 1000 PSI (68.9 bar)
Connection Size 1 inch NPT
Float and retainer non-removable
