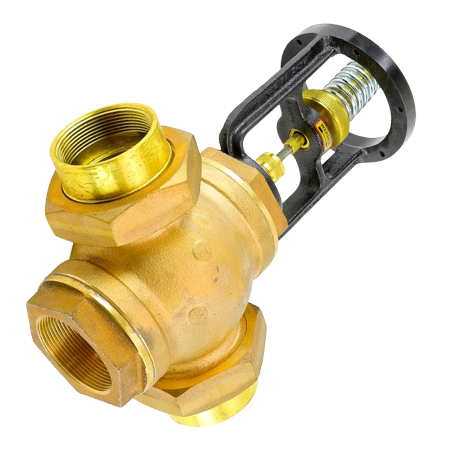

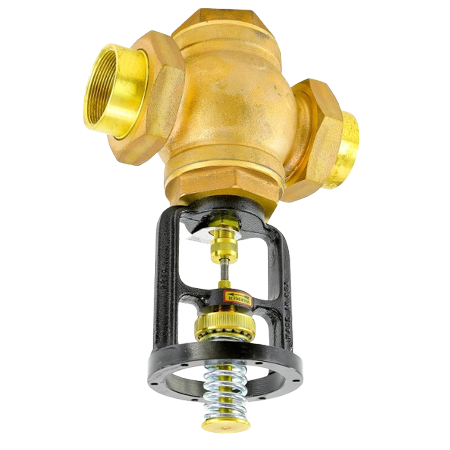

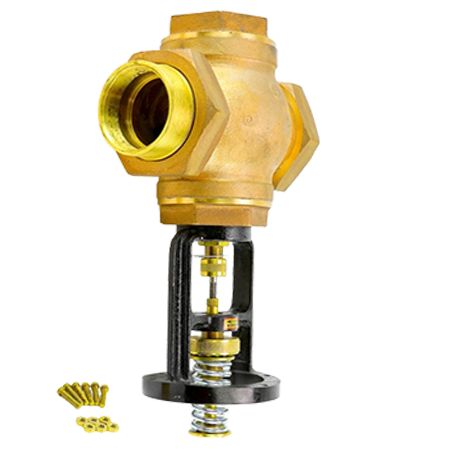

Hoffman Specialty 401401 Direct Acting 2" Brass Body and Bracket

Name: Hoffman Specialty 401401 Direct Acting 2" Brass Body and Bracket
Brand: Hoffman Specialty
SKU: 401401
Price: 3012.12 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Hoffman Specialty 401401 Direct Acting 2" Brass Body and Bracket

SKU: 401401

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 - 2 Weeks Usually Ships 1 - 2 Weeks	$3,012.12 /ea	Usually Ships 1 - 2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 401401 is a direct-acting brass body and bracket that has a 2" NPT connection size. It has 200 PSI (13.8 bar) maximum body pressure with up to 350˚F (177˚C) temperature rating.

The direct-acting thermostatic temperature regulator valve body is ideal for sliding piston three-way valve applications with water service. The unit features a three-way body design that can be used for mixing or diverting. The 602255 packing and 699993 packing gland replacement parts are also available.

The 401401 and 400563 valve assembly replaces part number 400376 Assembled Body Bracket and Actuator.

Maximum Differential Pressure	200 psi (13.8 bar)
Valve Outlet	Three-Way
Size	2" NPT
Body Material	Brass
Maximum Pressure	250 psi (17.3 bar)
Media	Water
Maximum Body Temperature	350˚F (177˚C)
Temperature Range	100–140°F (38–60°C)

Download Product Information:

Hoffman Specialty Series 1140 & 1141 Thermostatic Temperature Regulators Technical Datasheet
