Honeywell AM101-UPEX-1LF Mixing Valves 3/4" Union Pex 70-145F

Name: Honeywell AM101-UPEX-1LF Mixing Valves 3/4" Union Pex 70-145F
Brand: Honeywell Resideo
SKU: AM101-UPEX-1LF
Price: 160.62 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell AM101-UPEX-1LF Mixing Valves 3/4" Union Pex 70-145F

SKU: AM101-UPEX-1LF

Brand:

Rating:

Quantity	Price	Stock
6 Usually Ships 2 - 4 Weeks	$160.62 /ea	6

Buy in Bulk & Save

Quantity	Price
4+	$152.59 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

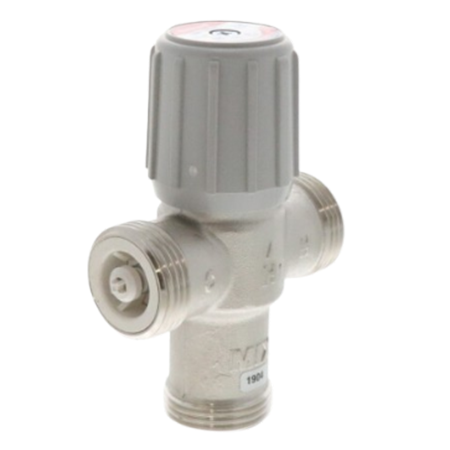

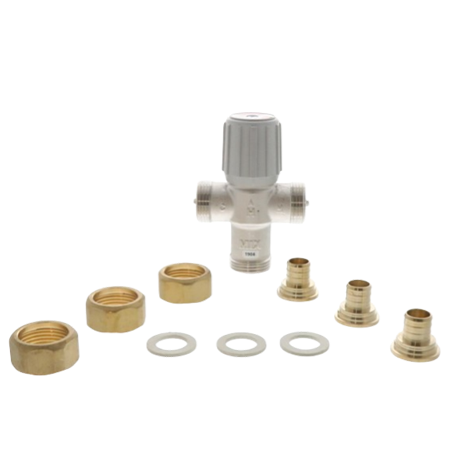

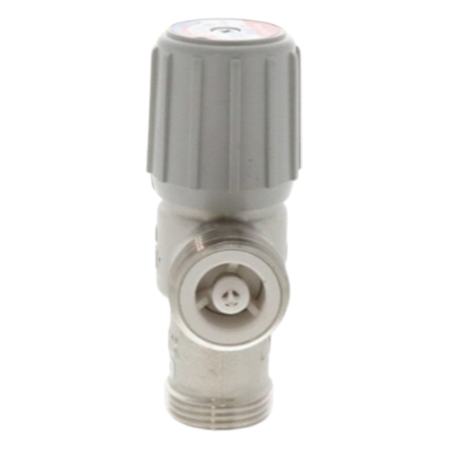

The AM101-UPEX-1LF is a mixing valve that has a 3/4" Union PEX connection size. It has a 70 to 145°F operating temperature range, 3.9 Cv flow capacity, 1.9 lpm minimum flow rate, and 150 psi (1034 kPa) maximum pressure. ASSE, CSA, and IAPMO listed.

The mixing valve provides accurate adjustment and limits hot water temperature to the set heat setting. It allows additional hot water to be available in a safe and easy operation. The unit can be adjusted by loosening the screw and turning the hand wheel to the desired setpoint.

Check out the available replacement parts:

AM-1-025RP Repair Kit
AM1-TG101-US-LF Thermostatic Mixing Valve
TG200-UT Thermometer 2" Dial
TG250-UT Thermometer 2.5" Dial

Body Material	Teflon-Coated, Nickle-Plated Low Lead Brass
Design	Straight-Through
Approvals	ASSE, CSA, and IAPMO listed
Maximum Safe Operating Pressure	150 psi (1034 kPa)
Minimum Flow Rate	1.9 lpm
Pipe Size	3/4" Union PEX
Flow Capacity	3.9 Cv
Temperature Gauge Adapter/Thermowell Material	Low Lead Brass
O-Ring Material	EPDM Rubber
Shuttle Material	Teflon-Coated Low Lead Brass

Download Product Information:

Honeywell AM101-UPEX-1LF Mixing Valve Installation Instructions

Honeywell AM101-UPEX-1LF Mixing Valve Brochure

Honeywell AM101-UPEX-1LF Mixing Valve Technical Datasheet
