Honeywell AT20A1123 Transformer Primary 120V Secondary 24V 20Va

Name: Honeywell AT20A1123 Transformer Primary 120V Secondary 24V 20Va
Brand: Honeywell
SKU: AT20A1123
Price: 44.10 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell AT20A1123 Transformer Primary 120V Secondary 24V 20Va

SKU: AT20A1123

Brand:

Rating:

Quantity	Price	Stock
13 Usually Ships 1 - 2 Weeks	$44.10 /ea	13

Buy in Bulk & Save

Quantity	Price
10+	$41.89 /ea

Add to Cart

Add to Wishlist

The AT20A1123 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Honeywell 32001652-001 Transformer 10VA for HE220,225,260	32001652-001 Brand Honeywell

Add to Cart

Add to Wishlist

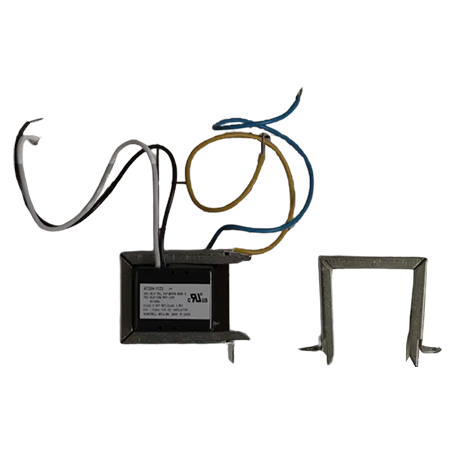

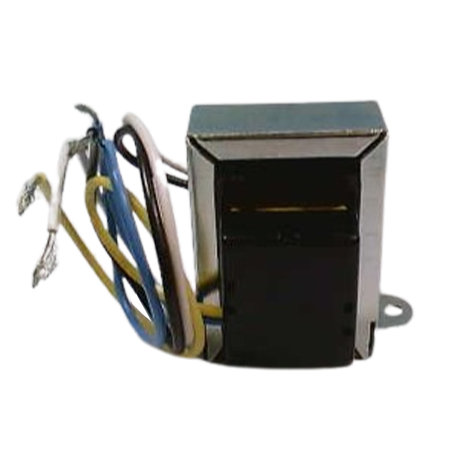

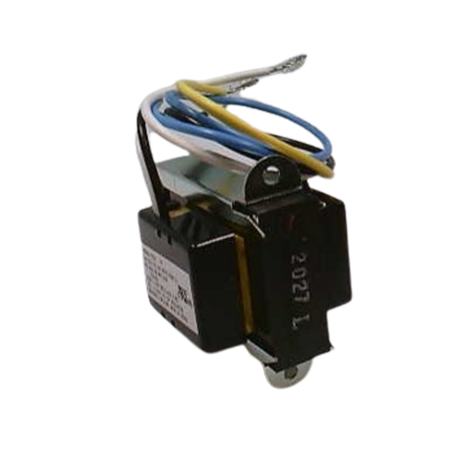

The AT20A1123 is a transformer that has a 120V primary and 24V secondary voltage with a 20VA power rating. It has 9" lead wires with a 50/60 Hz frequency. UL-recognized and CSA-certified.

The transformer is used to convert high voltage to lower power allowing compatibility for devices that require low energy such as thermostats, gas valves, and relays. It is constructed with a NEMA type B enclosure that provides excellent durability with a -20 to +105°F temperature range.

The AT20A1123 is easy to install and has a channel frame allowing direct, horizontal, vertical, or foot mounting.

The AT20A1123 directly replaces part number 32001652-001.

Primary Voltage	120V
Secondary Voltage	24V
Frequency	50/60 Hz
Electrical Rating	20VA
Enclosure Rating	NEMA Type B
Temperature Range	-20 to +105°F
Lead Length	9"
Approvals	UL-recognized and CSA-certified
Mounting	Channel Frame Mounting allows for Direct, Horizontal, or Vertical Foot mounting

Download Product Information:

Honeywell AT20A1123 Transformer Technical Datasheet

Honeywell AT20A1123 Transformer Installation Instructions
