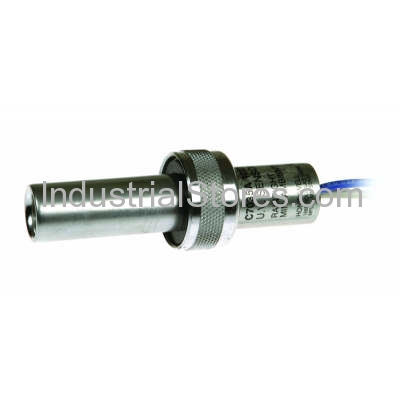

Flame Sensor, Ultraviolet, Minipeeper.
Overview
Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.
Features
Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
Mounts on a 1 in. sighting pipe by using an integral collar.
Protects the sensing tube with a shield.
Meets outdoor rain tight requirements of Underwriters Laboratories Inc., NEMA 4 and NEMA 4X.
Wires in parallel for difficult sighting applications.
Seals against pressures as high as 5 psi (34.5 kPa) when correctly installed.
Field-replaceable ultraviolet sensing tube.
Product Specifications
Application
Coal fired burners; Gas fired burners; Oil fired burners
Dimensions (in.)
1 1/2 in. diameter x 4 1/8 in. long
Dimensions (mm)
38 mm diameter x 105 mm long
Used With
Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290
Weight (lb)
6 oz
Weight (kg)
0.17 kg
Comments
Detects ultraviolet radiation in flames
Mounting
Integral nut for 1 in. sighting pipe.
Approvals, Underwriters Laboratories Inc.
Listed: File No. MP268, Guide No. MCCZ
Approvals, Canadian Standards Association
Certified: Master Report LR95329-1
Electrical Connections
2 NEC Class 1 lead wires
Vibration
0.5 G max
Approvals, Swiss RE
Acceptable
Approvals, Factory Mutual
Approved: Report No. 24181.03
Type
Ultraviolet, Minipeeper
Ambient Temperature Range (F)
0 F to 250 F
Ambient Temperature Range (C)
-18 C to +121 C
Approvals, Others
DIN (Europe)
NEMA Rating
NEMA 3 and NEMA 4
Lead Length (in.)
72 in.
Lead Length (mm)
1829 mm
