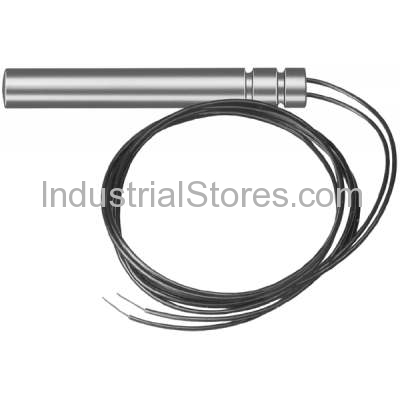

PT 3000 Platinum Immersion Temperature Sensor, 180 in. leads.
Overview
Primary electronic temperature sensor for the R7380J,L, W7100 and W7505 load inputs for immersion, strap-on and duct mounting.
Features
Requires no setting or calibration.
Sensor can be located up to 1195 ft. (340 m) from controller.
Pigtail leads.
Product Specifications
Application
Intended for monitoring or controlling temperature in conjunction with an electronic control
Dimensions (in.)
3/8 in. dia. x 2 5/8 in. long
Dimensions (mm)
10 mm dia. x 66 mm long
Used With
Excel 500, T775 Series 2000
Comments
Use immersion well 121371A copper or 121371E steel.
Item Type
Product
Mounting
Immersion or strap-on discharge
Operating Humidity Range (% RH)
90% RH at 90 F, non-condensing
Sensor
PT1000, 1097 ohms @ 77 F PTC
Operating Temperature Range (F)
-40 F to +250 F
Operating Temperature Range (C)
-40 C to +125 C
Shipping and Storage Temperature Range (F)
-40 F to +302 F
Shipping and Storage Temperature Range (C)
-40 C to +150 C
Insertion Length (in.)
3 in.
Insertion Length (mm)
76 mm
