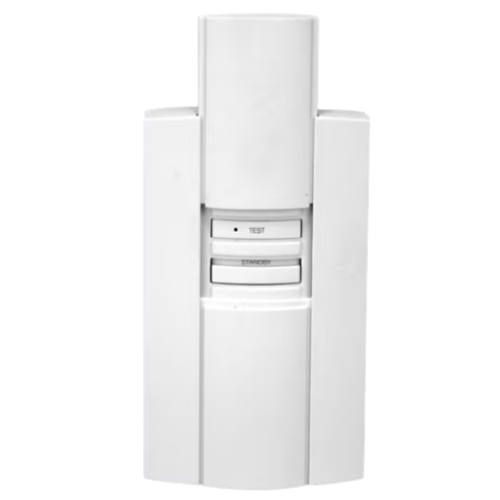

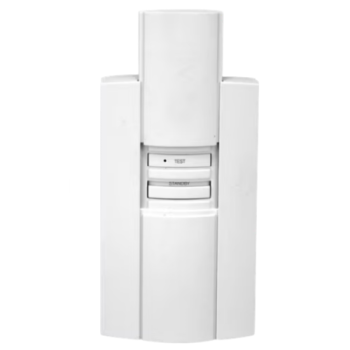

Dual Voltage Line Volt Slave Unit for Floor Heating over 15 A, with 5 mA GFCI
.
Overview
This system is specially designed for large floor heating applications exceeding 15A.
Features
Here's how it works
A floor heating area exceeding 15A is separated into zones, with a linked unit responsible for heating each zone.
All linked units are controlled by a master thermostat responsible for settings/programming of the entire floor.
No settings dial. Settings controlled by master means units can be installed anywhere
ON/STANBY switch enables unit's heating area to be shut down independently of other heating areas
Built-in GFCI/EGFPD with test light. No need to buy separate safety cutoff.
Product Specifications
Application
Electric Heating; Linked unit for radiant floor
Dimensions (in.)
4.9 in. X 2.8 in. X 0.9 in.
Dimensions (mm)
122 mm X 70 mm X 23 mm
Used With
Aube TH114-AF-12VDC Master Thermostat, Aube TH115-AF-12VDC Master Thermostat
Comments
Works with TH114-AF-12VDC & TH115-AF-12VDC Master Thermostats
Mounting
Vertical
Electrical Ratings
3600 W @ 240V; Maximum Load: 15 A (resistive only); 1800 W @ 120 V
Frequency
60 Hz
Approvals, Canadian Standards Association
Approved
Electrical Connections
6 in. (150 mm) tinned copper lead wires
Supply Voltage
120 Vac; 240 Vac
Operating Temperature Range (F)
32 F to 122 F
Operating Temperature Range (C)
0 C to 50 C
Color
White
Ambient Temperature Range (F)
On Master Thermostat
Ambient Temperature Range (C)
On Master Thermostat
Switching Action
DPST
Switch Type
Relay
Programmability
On Master Thermostat
Power Method
Hardwired
Setting Temperature Range (F)
On Master Thermostat
Setting Temperature Range (C)
On Master Thermostat
Parts Needed for Operation (not included) - Non-Zoned System
Aube TH114-AF-12VDC or Aube TH115-AF-12VDC Master Thermostats
