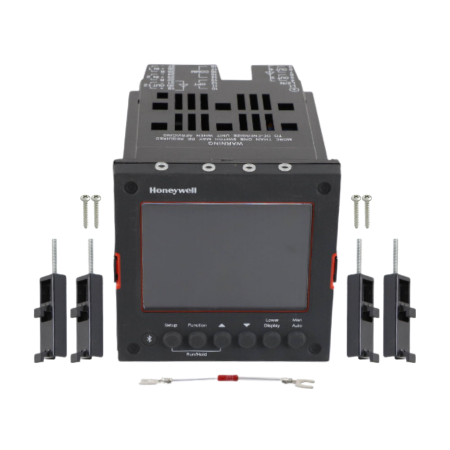

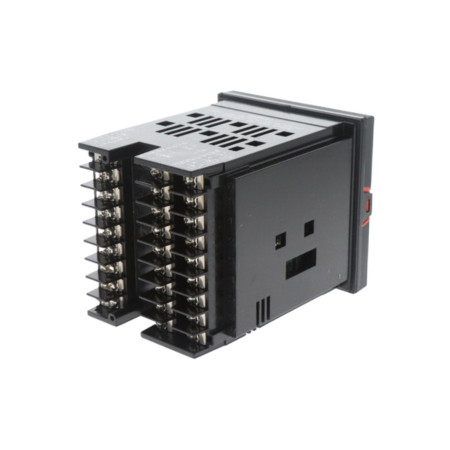

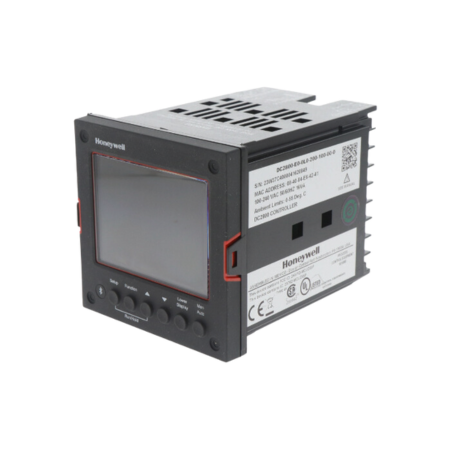

Honeywell DC2800E00L0200100 Universal Digital Controller (DC2800-E0-0L0-200-100-00-0)

Name: Honeywell DC2800E00L0200100 Universal Digital Controller (DC2800-E0-0L0-200-100-00-0)
Brand: Honeywell
SKU: DC2800E00L0200100
Price: 1284.86 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Honeywell DC2800E00L0200100 Universal Digital Controller (DC2800-E0-0L0-200-100-00-0)

SKU: DC2800E00L0200100

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$1,284.86 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

The DC2800E00L0200100 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Honeywell DC2500E00L00200000 Universal Digital Controller (DC2500-E0-0L00-200-00000-E0-0)	DC2500E00L00200000 Brand Honeywell

Add to Cart

Add to Wishlist

The Honeywell DC2800E00L0200100 (DC2800-E0-0L0-200-100-00-0) is a universal digital controller with a 1/4 DIN size that operates on 100 to 240 VAC, 50/60 Hz, and 16VA. It is CE-marked, CSA-certified, and UL-Listed, ensuring safety compliance.

Features

Full-color TFT screen displays the output percentage or operator messages.
Setpoint button allows users to easily adjust and switch between setpoints.
Bluetooth and remote connectivity enable seamless wireless communication.
App-based configuration simplifies setup, operation, and maintenance.
Single Universal Input (UI) supports thermocouples, RTDs, and linear inputs.

This component offers accurate control and real-time monitoring with 0.15% accuracy and an impressive 100ms scanning speed. It supports up to 64 setpoint segments and 4 PID sets, making it a highly adaptable solution for complex control needs.

The DC2800E00L0200100 is a direct upgrade from UDC2500 and UDC3200 and directly replaces the DC2500E00L00200000 controller. It is suitable for use in industrial, commercial, and residential HVAC applications.

Size	1/4 DIN
Voltage	100 to 240 VAC
Frequency	50/60 Hz
Current Rating	16VA
Approvals	CE-Marked, CSA Certified, UL Listed
Applications	HVAC Systems
Ambient Limits	0 to 55°C
